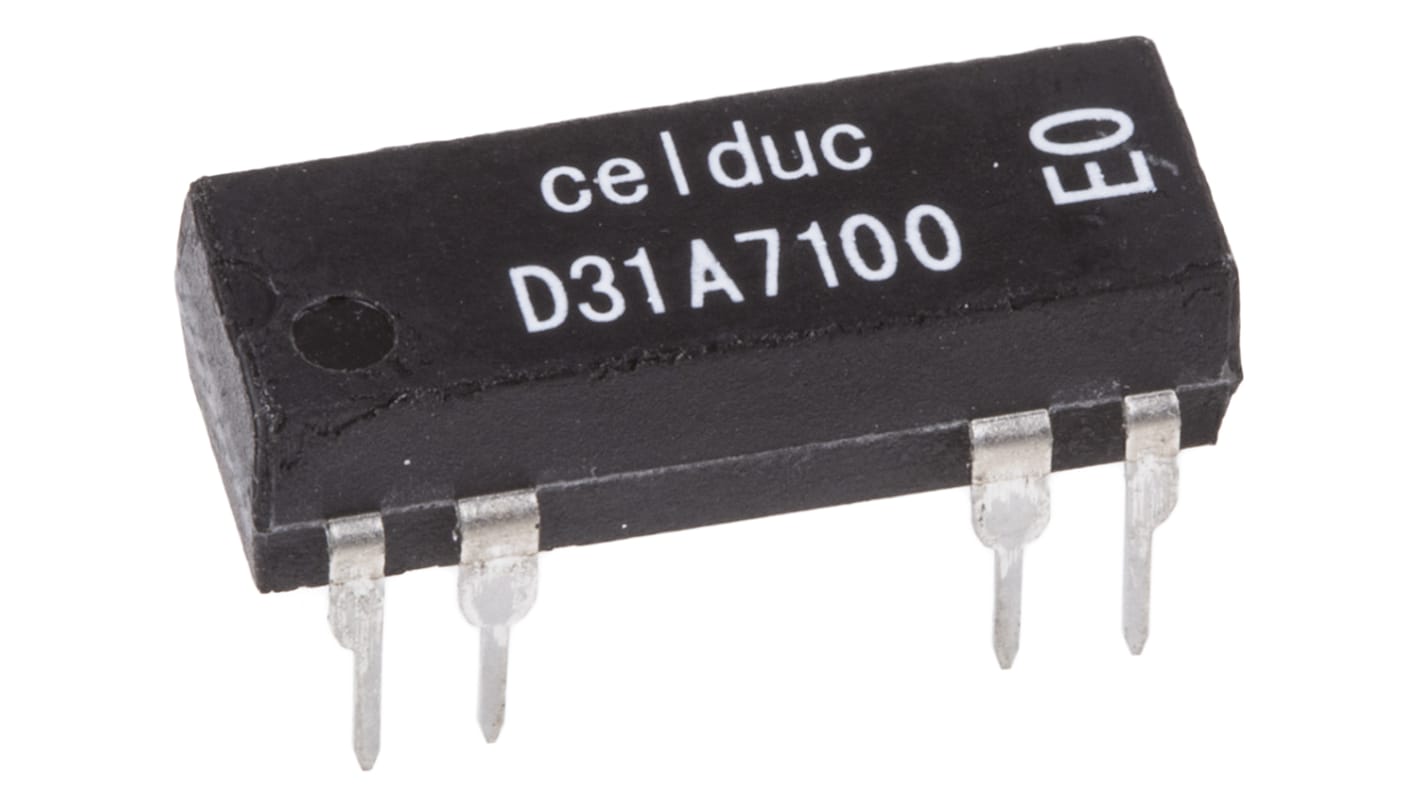

Celduc Plug In Reed Relay, 24V dc Coil, SPST, 100V dc Max, 2150Ω
- N° de stock RS:
- 178-2725
- Référence fabricant:
- D31A7100
- Fabricant:
- Celduc
392 En stock pour livraison sous 1 jour(s)
Ajouté
Prix la pièce
4,52 €
(TVA exclue)
5,47 €
(TVA incluse)
| Unité | Prix par unité |
| 1 - 24 | 4,52 € |
| 25 - 99 | 4,33 € |
| 100 - 249 | 4,03 € |
| 250 - 499 | 3,57 € |
| 500 + | 3,46 € |
- N° de stock RS:
- 178-2725
- Référence fabricant:
- D31A7100
- Fabricant:
- Celduc
Documentation technique
Législations et de normes
Statut RoHS non applicable
- Pays d'origine :
- FR
Détails du produit
Celduc Reed Relays
Reed relay in DIP package
Over-moulding identical to that of the integrated circuits
Over-moulding identical to that of the integrated circuits
Spécifications
Attribut | Valeur |
|---|---|
| Contact Configuration | SPST |
| Coil Voltage | 24V dc |
| Mounting Type | Plug In |
| Maximum Switching Voltage AC | 100V ac |
| Maximum Switching Voltage DC | 100V dc |
| Coil Resistance | 2150Ω |
| Length | 19.1mm |
| Height | 6.8mm |
| Depth | 7.85mm |
| Dimensions | 19.1 x 7.85 x 6.8mm |
| Isolation Coil To Contact | 1.4kV dc |
| Contact Material | Rhodium |
| Terminal Type | Through Hole |
| Operating Temperature Range | -40 → +70°C |
| Maximum Switching Power AC | 10VA |
| Life | 1000000 (Electrical) cycles |
| Maximum Switching Power DC | 10 W |
| Operating Time Including Bounce | 1ms |
| Maximum Operating Temperature | +70°C |
| Contact Resistance | 150 mΩ |
| Minimum Operating Temperature | -40°C |
