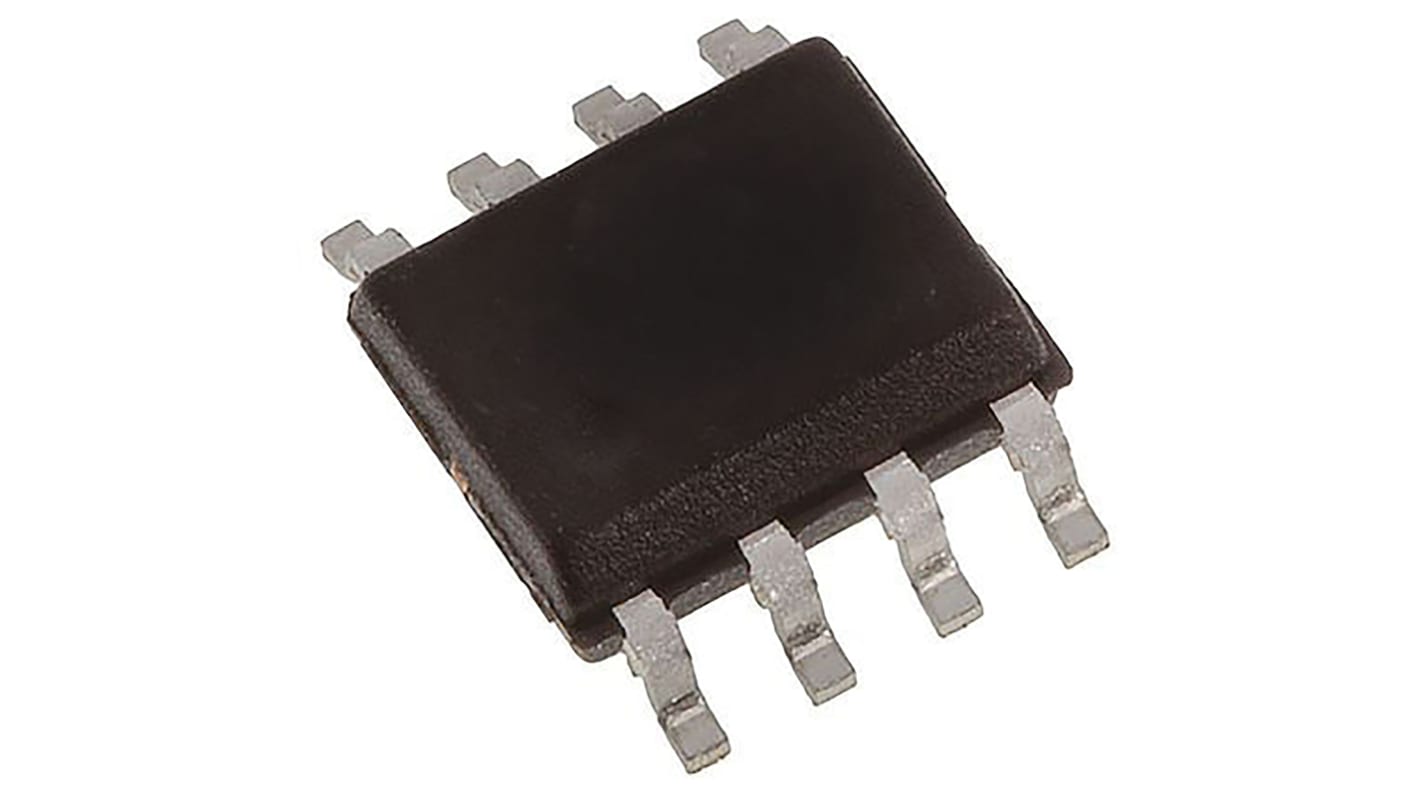

Texas Instruments UCC3802D, PWM Controller, 1000 kHz 8-Pin, SOIC
- N° de stock RS:
- 620-0622
- Référence fabricant:
- UCC3802D
- Fabricant:
- Texas Instruments
55 En stock pour livraison sous 1 jour(s)
Ajouté
Prix L'unité (en paquet de 5)
2,526 €
(TVA exclue)
3,056 €
(TVA incluse)
| Unité | Prix par unité | le paquet* |
| 5 - 20 | 2,526 € | 12,63 € |
| 25 - 95 | 2,22 € | 11,10 € |
| 100 - 245 | 1,942 € | 9,71 € |
| 250 - 495 | 1,816 € | 9,08 € |
| 500 + | 1,72 € | 8,60 € |
| *prix conseillé | ||
- N° de stock RS:
- 620-0622
- Référence fabricant:
- UCC3802D
- Fabricant:
- Texas Instruments
Documentation technique
Législations et de normes
Détails du produit
Flyback Controller, Current Control, UCC28/UCC38 Series, Texas Instruments
The isolated-flyback power supply controller provides Constant-Voltage (CV) and Constant-Current (CC) output regulation to improve transient response to large load steps. Primary-Side Regulation (PSR) eliminates the need for an Optocoupler.
Flyback Controllers, Texas Instruments
Current-Mode and Voltage-Mode PWM Controller
Primary-Side Regulation
Peak Power Mode
Low Power
Primary-Side Regulation
Peak Power Mode
Low Power
Spécifications
Attribut | Valeur |
|---|---|
| Maximum Switching Frequency | 1000 kHz |
| Output Current | 1 A |
| Number of Outputs | 1 |
| Control Method | Current |
| Mounting Type | Surface Mount |
| Fall Time | 44ns |
| Package Type | SOIC |
| Rise Time | 41ns |
| Topology | Boost, Buck, Flyback, Forward |
| Pin Count | 8 |
| Maximum Duty Cycle | 100% |
| Dimensions | 4.9 x 3.91 x 1.58mm |
| Length | 4.9mm |
| PWM Controller Type | Current Mode |
| Width | 3.91mm |
| Height | 1.58mm |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
