Détails du produit

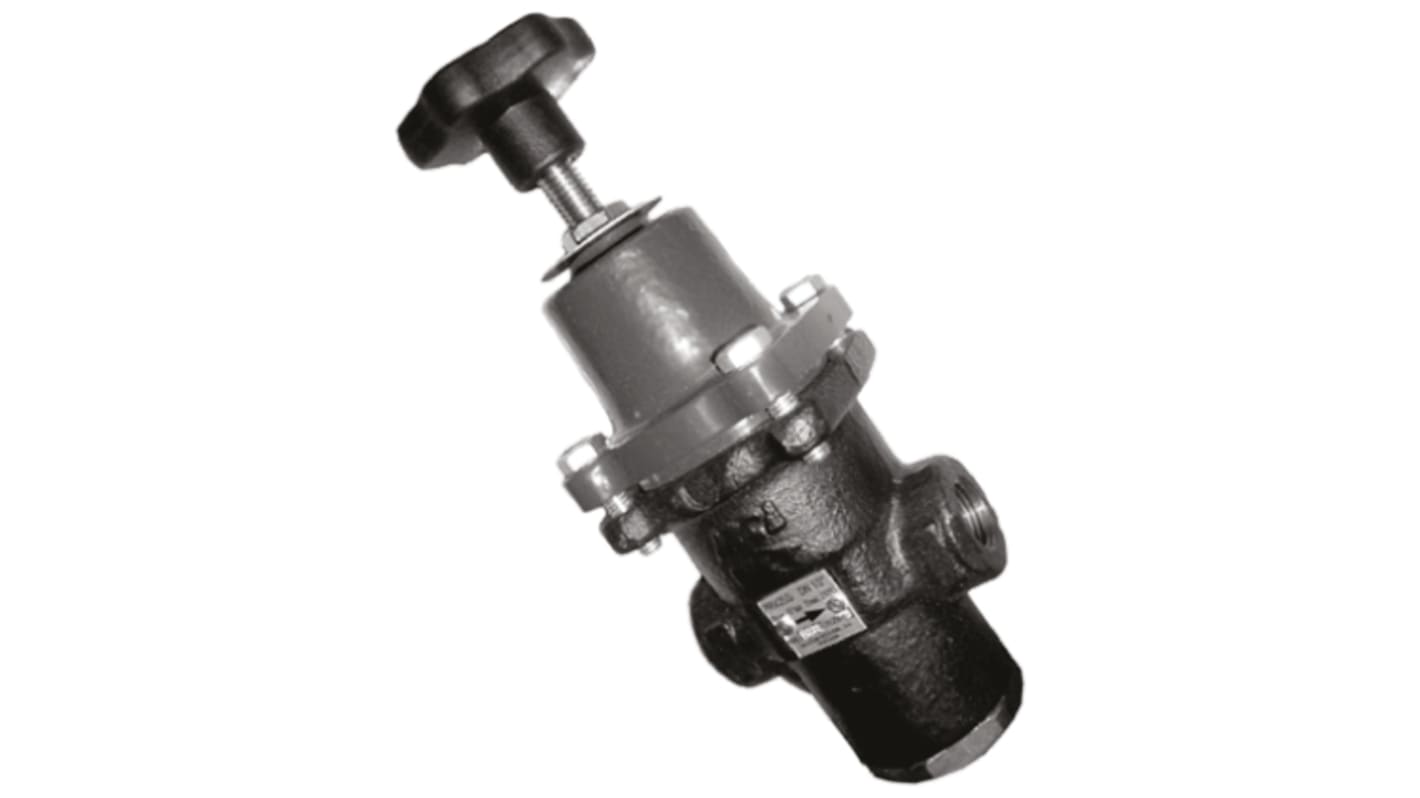

Pressure Reducing Valve
A direct acting pressure reducing valve designed for use on steam, compressed air and other gases. The valves compact design, specially designed bellows and built-in strainer make it suitable for reducing steam pressure at the point of use on laundry machines, dyeing, food industries, sterilizers, etc.
Connections are female screwed or flanged
Horizontal installation
Compact design
Bellows specially designed for high durability
Regulating screw with top cap
Built-in strainer
Soft valve
Horizontal installation
Compact design
Bellows specially designed for high durability
Regulating screw with top cap
Built-in strainer
Soft valve
Spécifications
Attribut | Valeur |
---|---|
Connection | 1 in BSP Female |
Minimum Outlet Pressure | 3.5bar |
Maximum Outlet Pressure | 8.6bar |
Body Material | Steel |
Connection Gender | Female |
Connection Size | 1in |
Thread Standard or Connection Type | BSP |
Outlet Pressure Range | 3.5 → 8.6bar |
