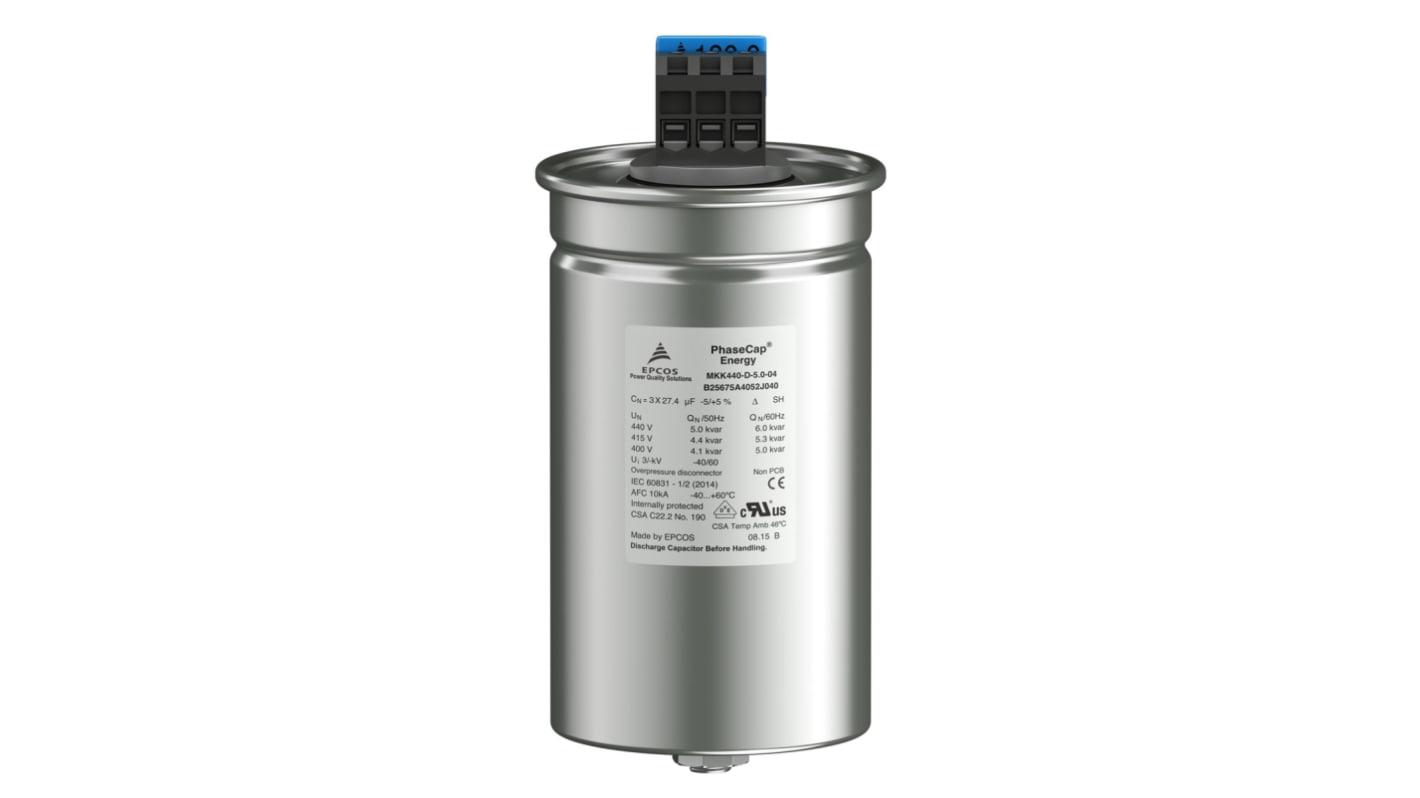

EPCOS Power Factor Correction Capacitor (PFC) 3 x 77μF 12.5kvar 15kvar 3

N° de stock RS:: 136-6321
Référence fabricant:: B25675C4122J515
Fabricant:: EPCOS

EPCOS Power Factor Correction Capacitor (PFC) 3 x 77μF 12.5kvar 15kvar 3

Article en cours d'approvisionnement. Merci de bien vouloir nous contacter.

Ajouté

Prix la pièce

92,88 €

(TVA exclue)

112,38 €

(TVA incluse)

Unité	Prix par unité
1 - 4	92,88 €
5 - 9	86,38 €
10 +	80,80 €

N° de stock RS:: 136-6321
Référence fabricant:: B25675C4122J515
Fabricant:: EPCOS

Documentation technique

EPCOS Power Factor Correction Capacitor Datasheet

Législations et de normes

Pays d'origine :: IN

Détails du produit

EPCOS B25673A Series Power Factor Correction Capacitors(PFC)

EPCOS Phasecap B25673A Series are Power Factor Correction (PFC) metallised polypropylene film capacitors. B25673A film capacitors are wave cut and feature concentric winding. Constructed in a cylindrical aluminium case with a threaded stud on the base, these PFC film capacitors have an overpressure disconnector and a ceramic discharge module. With optimised safety terminals, EPCOS PFC capacitors are suitable for indoor mounting and are naturally air cooled (forced air cooling).

Features & Benefits

Polypropylene film dielectric
Constructed from non-PCB, semi-dry biodegradable resin
B25673A film capacitors utilise self-healing technology
Compact size
Delta connected
3 phase

Applications

These capacitors are suited to power factor correction applications.

Spécifications

Attribut	Valeur
kvar 50Hz	12.5kvar
Width	85mm
kvar 60Hz	15kvar
Capacitance	3 x 77µF
Dielectric Material	Polypropylene
Maximum Operating Temperature	+60°C
Voltage	415V ac
Minimum Operating Temperature	-40°C
Series	MKK
Mounting Type	Stud Mount
Height	200mm
Number of Phases	3
Tolerance Minus	-5%
Weight	1.3kg
Terminal Type	Screw
Tolerance Plus	+5%
