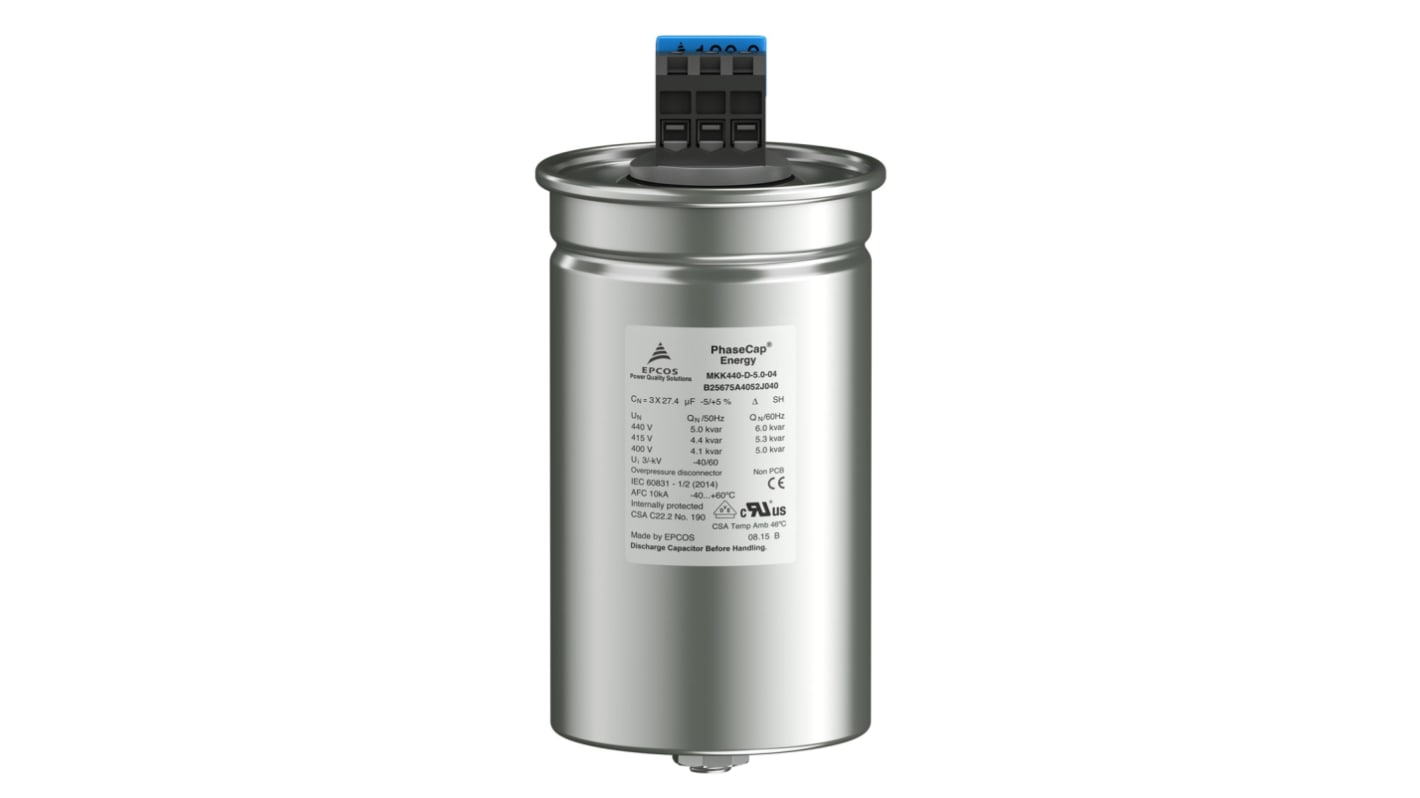

EPCOS Power Factor Correction Capacitor (PFC) 3 x 48.1μF 12.5kvar 15kvar 3

N° de stock RS:: 136-4931
Référence fabricant:: B25675C5122J525
Fabricant:: EPCOS

EPCOS Power Factor Correction Capacitor (PFC) 3 x 48.1μF 12.5kvar 15kvar 3

108 En stock pour livraison sous 1 jour(s)

Ajouté

Prix L'unité (en boîte de 9)

81,217 €

(TVA exclue)

98,273 €

(TVA incluse)

Unité	Prix par unité	La Boite*
9 +	81,217 €	730,953 €
*prix conseillé

N° de stock RS:: 136-4931
Référence fabricant:: B25675C5122J525
Fabricant:: EPCOS

Documentation technique

EPCOS Power Factor Correction Capacitor Datasheet

Législations et de normes

Pays d'origine :: IN

Détails du produit

EPCOS B25673A Series Power Factor Correction Capacitors(PFC)

EPCOS Phasecap B25673A Series are Power Factor Correction (PFC) metallised polypropylene film capacitors. B25673A film capacitors are wave cut and feature concentric winding. Constructed in a cylindrical aluminium case with a threaded stud on the base, these PFC film capacitors have an overpressure disconnector and a ceramic discharge module. With optimised safety terminals, EPCOS PFC capacitors are suitable for indoor mounting and are naturally air cooled (forced air cooling).

Features & Benefits

Polypropylene film dielectric
Constructed from non-PCB, semi-dry biodegradable resin
B25673A film capacitors utilise self-healing technology
Compact size
Delta connected
3 phase

Applications

These capacitors are suited to power factor correction applications.

Spécifications

Attribut	Valeur
Voltage	525V ac
Width	85mm
kvar 60Hz	15kvar
kvar 50Hz	12.5kvar
Capacitance	3 x 48.1µF
Tolerance Minus	-5%
Maximum Operating Temperature	+60°C
Dielectric Material	Polypropylene
Number of Phases	3
Height	200mm
Minimum Operating Temperature	-40°C
Series	MKK
Mounting Type	Stud Mount
Terminal Type	Screw
Weight	1.3kg
Tolerance Plus	+5%
