- N° de stock RS:
- 414-7541
- Référence fabricant:
- PXB-B3921
- Fabricant:
- Parker
- N° de stock RS:
- 414-7541
- Référence fabricant:
- PXB-B3921
- Fabricant:
- Parker
Documentation technique
Législations et de normes
Statut RoHS non applicable
Détails du produit

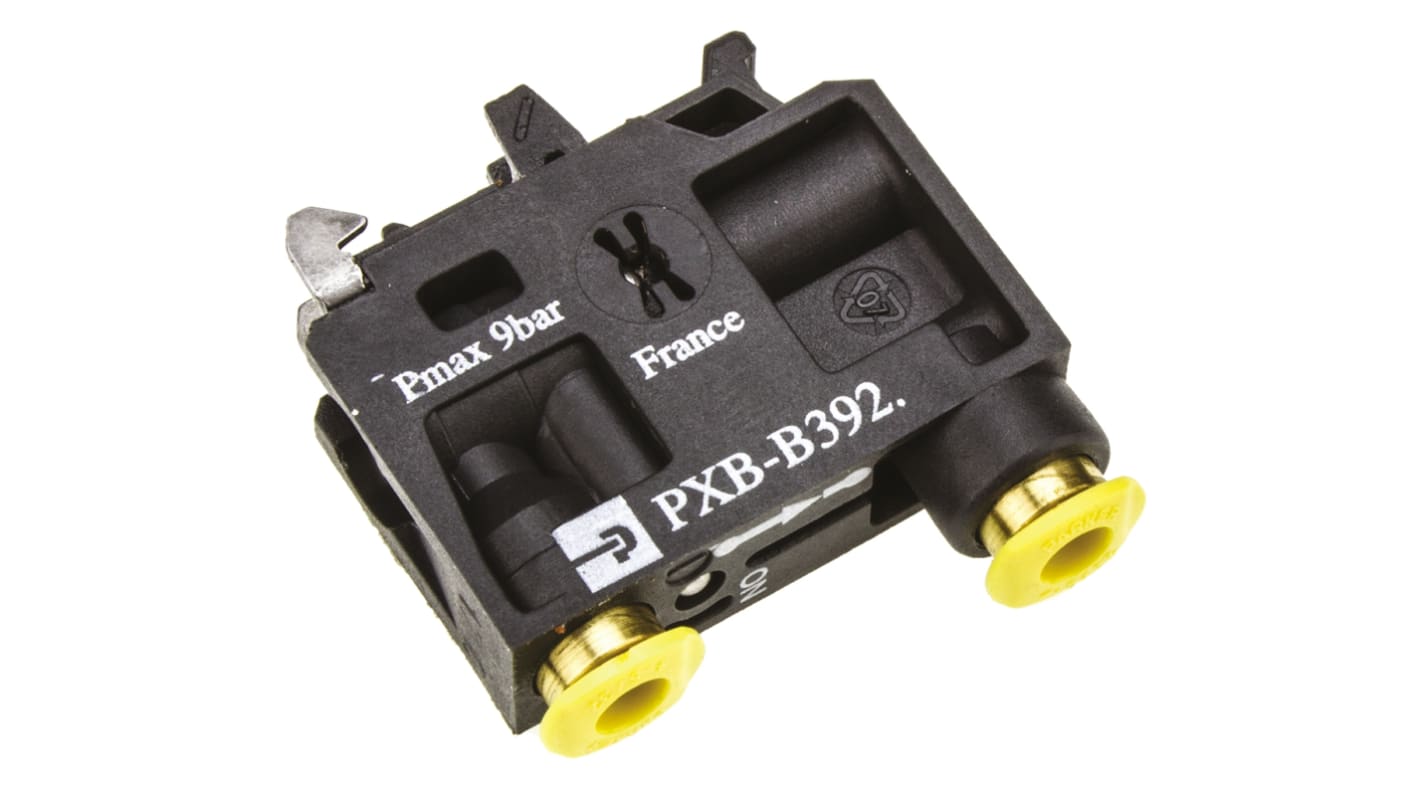

Parker Valve And Electrical Contact Block
The Parker PXB series 3/2 port valve has a switching type of NP. This valve and electrical contact block with mounting ring provides reliability for your pneumatic installations. This valve has a modular construction and the contact blocks allow a flexible configuration. It is a straight plunger- actuated spring return valve and is used with ZB4 operating heads.
Features and Benefits
5/32in instant straight connections
Maximum operating pressure is 9bar
Maximum flow rate is 60L/min
Operating temperature ranges between -15°C and 60°C
Simultaneous actuation of an electrical contact and a pneumatic valve is possible via the electrical contact block
High-quality manually operated spool valves and Viton seals
Suitable for positive pressure or vacuum line applications
Maximum operating pressure is 9bar
Maximum flow rate is 60L/min
Operating temperature ranges between -15°C and 60°C
Simultaneous actuation of an electrical contact and a pneumatic valve is possible via the electrical contact block
High-quality manually operated spool valves and Viton seals
Suitable for positive pressure or vacuum line applications
Spécifications
Attribut | Valeur |
---|---|
Control Mechanism | Plunger |
Connection Port Thread | Push In 4 mm |
Function | 3/2 |
Manufacturer Series | PXB |
Maximum Operating Pressure | 9 bars |
Maximum Flow Rate | 60L/min |
Minimum Operating Temperature | -15°C |
Maximum Operating Temperature | +60°C |
Number of Ports | 3/2 |
