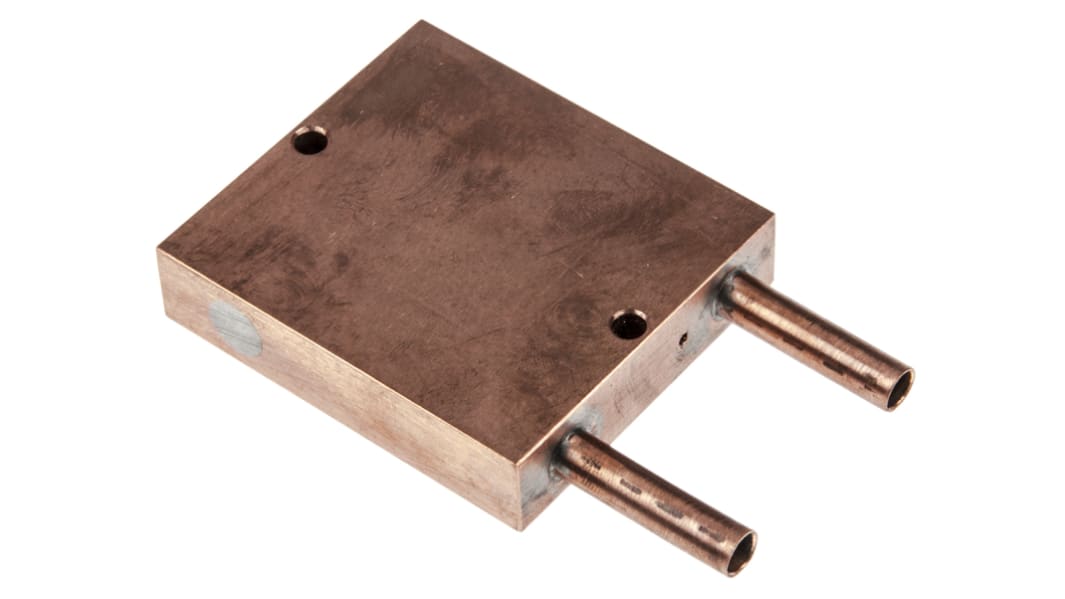

Liquid Heat Exchanger, 12.7 x 57 x 51mm
- N° de stock RS:
- 169-4404
- Référence fabricant:
- LI201
- Fabricant:
- Laird Technologies
1 En stock pour livraison sous 1 jour(s)
Ajouté
Prix la pièce
304,79 €
(TVA exclue)
368,80 €
(TVA incluse)
| Unité | Prix par unité |
| 1 - 14 | 304,79 € |
| 15 - 49 | 262,42 € |
| 50 - 99 | 238,35 € |
| 100 - 249 | 195,07 € |
| 250 + | 187,45 € |
- N° de stock RS:
- 169-4404
- Référence fabricant:
- LI201
- Fabricant:
- Laird Technologies
Documentation technique
Législations et de normes
Statut RoHS non applicable
- Pays d'origine :
- IN
Détails du produit
Water Heat Exchangers
Recommended for the dissipation of heat released on the hot side of the Peltier effect modules
Temperature increase with respect to the water is 2 to 5°C rather than 15 to 20°C with an air heat exchanger
Model LI 102 is suitable for Peltier effect modules with dimensions up to 30 x 30 mm
Model LI 201 is suitable for Peltier effect modules with dimensions up to 40 x 40 mm
Model LI 301 is suitable for Peltier effect modules with dimensions up to 62 x 62 mm
Fitted with a hole to allow the incorporation of a temperature probe
Temperature increase with respect to the water is 2 to 5°C rather than 15 to 20°C with an air heat exchanger
Model LI 102 is suitable for Peltier effect modules with dimensions up to 30 x 30 mm
Model LI 201 is suitable for Peltier effect modules with dimensions up to 40 x 40 mm
Model LI 301 is suitable for Peltier effect modules with dimensions up to 62 x 62 mm
Fitted with a hole to allow the incorporation of a temperature probe
Thermoelectric Accessories
Spécifications
Attribut | Valeur |
|---|---|
| Dimensions | 12.7 x 57 x 51mm |
| Number of Cooling Elements | 1 |
| Height | 12.7mm |
| Radiator Material | Copper |
| Refrigerant | Water-Based Coolant |
| Tube Connector Material | Copper |
| Depth | 51mm |
| Width | 57mm |
