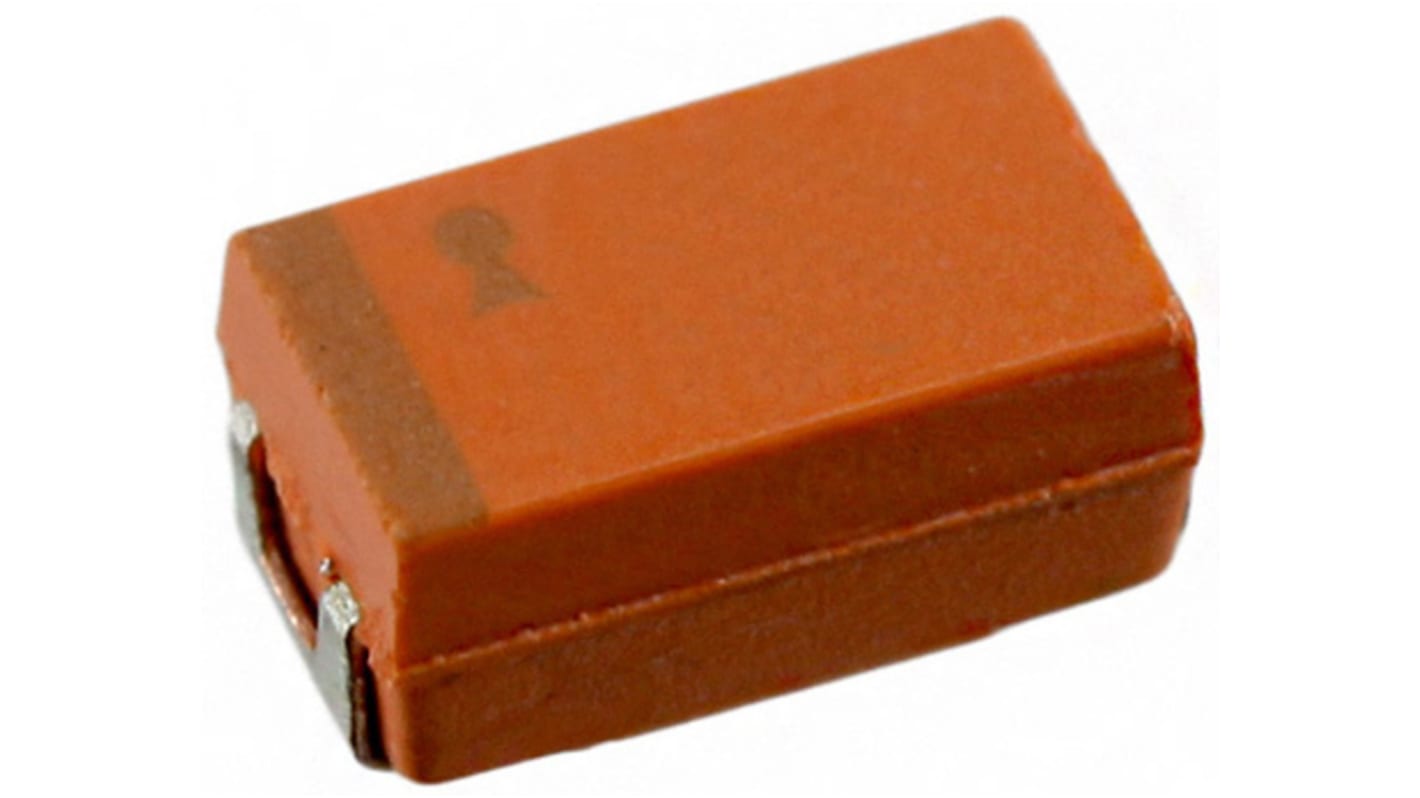

KYOCERA AVX 100μF Niobium Capacitor 6.3V dc ±20%, Surface Mount 7.3mm, NOJ
- N° de stock RS:
- 144-1963
- Référence fabricant:
- NOJD107M006RWJ
- Fabricant:
- KYOCERA AVX
Offre groupée disponible
Sous-total (1 sachet de 25 unités)*
16,175 €
(TVA exclue)
19,575 €
(TVA incluse)
Informations sur le stock actuellement non accessibles
Unité | Prix par unité | Le Sachet* |
|---|---|---|
| 25 - 25 | 0,647 € | 16,18 € |
| 50 - 75 | 0,614 € | 15,35 € |
| 100 + | 0,472 € | 11,80 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 144-1963
- Référence fabricant:
- NOJD107M006RWJ
- Fabricant:
- KYOCERA AVX
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | KYOCERA AVX | |
| Series | NOJ | |
| Capacitance | 100µF | |
| Tolerance | ±20% | |
| Voltage | 6.3V dc | |
| Package/Case | 7343-31 | |
| Mounting Type | Surface Mount | |
| Equivalent Series Resistance | 0.4Ω | |
| Dissipation Factor | 6% | |
| Leakage Current | 12 μA | |
| Dimensions | 7.3 x 4.3 x 2.9mm | |
| Lead Pitch | 4.4mm | |
| Depth | 4.3mm | |
| Height | 2.9mm | |
| Tolerance Minus | -20% | |
| Polarised | Polar | |
| Length | 7.3mm | |
| Tolerance Plus | +20% | |
| Surge Voltage | 13V | |
| Dielectric Material Family | Niobium | |
| Minimum Operating Temperature | -55°C | |
| Terminal Type | Surface Mount | |
| Maximum Operating Temperature | +105°C | |
| Sélectionner tout | ||
|---|---|---|
Marque KYOCERA AVX | ||
Series NOJ | ||
Capacitance 100µF | ||
Tolerance ±20% | ||
Voltage 6.3V dc | ||
Package/Case 7343-31 | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 0.4Ω | ||
Dissipation Factor 6% | ||
Leakage Current 12 μA | ||
Dimensions 7.3 x 4.3 x 2.9mm | ||
Lead Pitch 4.4mm | ||
Depth 4.3mm | ||
Height 2.9mm | ||
Tolerance Minus -20% | ||
Polarised Polar | ||
Length 7.3mm | ||
Tolerance Plus +20% | ||
Surge Voltage 13V | ||
Dielectric Material Family Niobium | ||
Minimum Operating Temperature -55°C | ||
Terminal Type Surface Mount | ||
Maximum Operating Temperature +105°C | ||
AVX 2917 NOJ Series Niobium Oxide Capacitors
AVX oxicap capacitors feature niobium oxide as the main material for the anode electrode for general applications. Niobium oxide has much higher ignition energy (200 times) and much lower burning rate than pure metal materials such as Tantalum or Niobium. This feature means that OxiCap® multiylayer ceramic capacitors will not burn up to the category voltage. They are suitable for applications with rail voltages of up to 7 V.
Features
Non- burn safe technology
CV range: 2.2 to 1000 μF / 1.8 to 10 V
13 case sizes available
Reliability level: 0.5%/1000 HRS. At 85°C
CV range: 2.2 to 1000 μF / 1.8 to 10 V
13 case sizes available
Reliability level: 0.5%/1000 HRS. At 85°C
Applications
In-cabin entertainment systems
Seat position modules
Airbag controls etc
Seat position modules
Airbag controls etc
2917 Range
