- N° de stock RS:
- 884-2473
- Référence fabricant:
- MAC04D0100
- Fabricant:
- GIC
- N° de stock RS:
- 884-2473
- Référence fabricant:
- MAC04D0100
- Fabricant:
- GIC
Documentation technique
Législations et de normes
- Pays d'origine :
- IN
Détails du produit

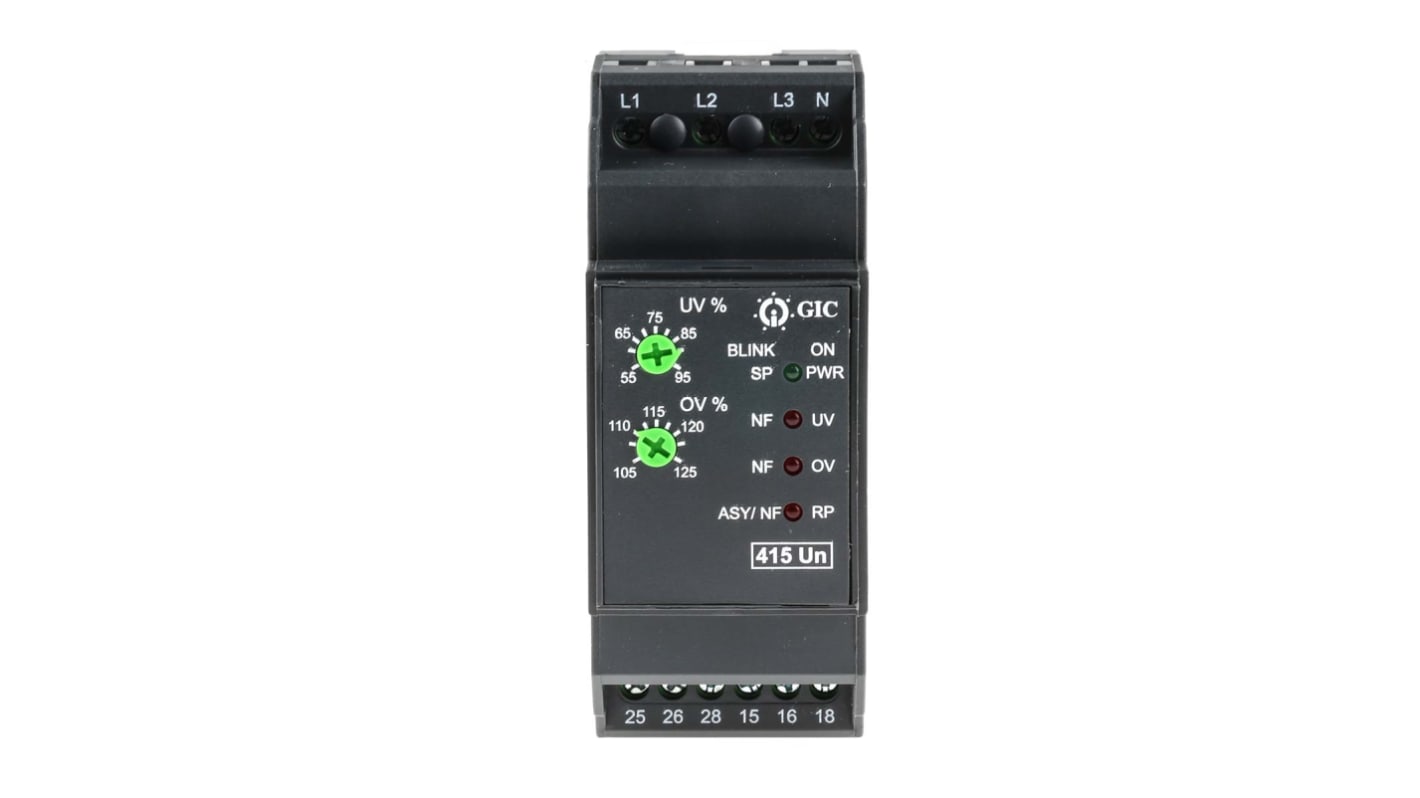

GIC Phase Failure & Neutral Loss Detection Monitoring Relays
Supply monitoring relays with combined phase failure and neutral loss detection.
Phase loss failure detection
Neutral loss detection
Phase reverse detection
Phase asymmetry
Adjustable over & under voltage trip level
LED indication for all failure conditions
Automatic recovery on fault removal
Neutral loss detection
Phase reverse detection
Phase asymmetry
Adjustable over & under voltage trip level
LED indication for all failure conditions
Automatic recovery on fault removal
GIC Supply Monitor Relays
Spécifications
Attribut | Valeur |
---|---|
Monitoring Application | Phase, Voltage |
Electrical Phase | 3 |
Contact Configuration | DPDT |
Voltage Sensitivity | Overvoltage Protection, Undervoltage Protection |
Phase Sensitivity | Neutral Loss, Phase Failure, Phase Reversal, Phase Sequence, Phase Symmetry |
Frequency Sensing Range | 47 → 53Hz |
Series | SM 500 |
Dimensions | 30 x 60 x 90mm |
Maximum Operating Temperature | +60°C |
Width | 60mm |
Height | 90mm |
Maximum Frequency Sensed | 53Hz |
Operating Temperature Range | +60°C |
Minimum Operating Temperature | -10°C |
Terminal Type | Screw |
Special Features | Automatic Recovery on Fault Removal, LED Indication for All Failure Conditions |
Length | 30mm |
Minimum Frequency Sensed | 47Hz |
