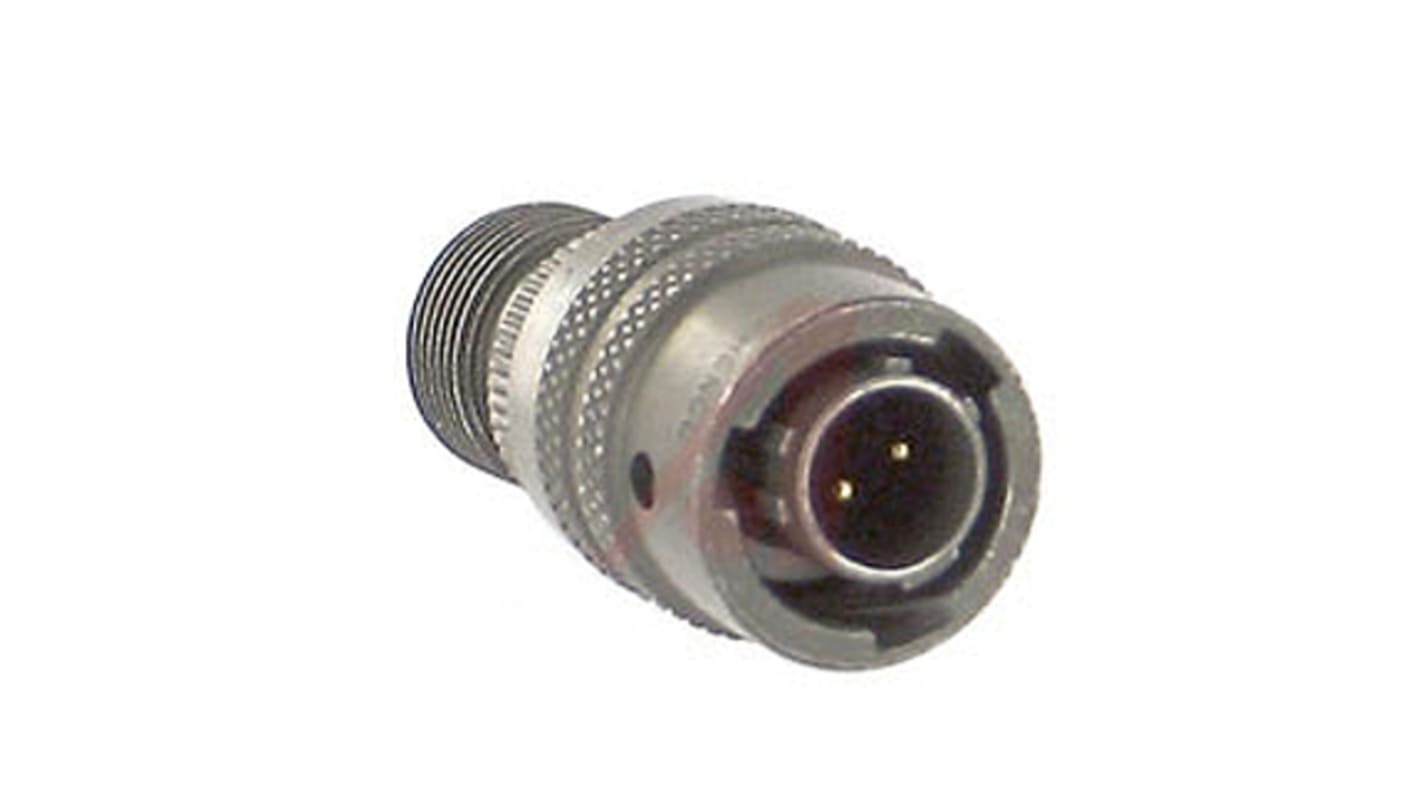

Amphenol Socapex, PT, Copper Alloy 2 Way Cable Mount MIL Spec Circular Connector PlugGreen, Pin Contacts,Shell Size 8,
- N° de stock RS:
- 872-1578
- Référence fabricant:
- PT06A-8-2P(SR)
- Fabricant:
- Amphenol Socapex
Offre groupée disponible
Sous-total (1 unité)*
48,34 €
(TVA exclue)
58,49 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 20 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 7 unité(s) expédiée(s) à partir du 14 novembre 2025
- Plus 32 unité(s) expédiée(s) à partir du 04 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 48,34 € |
| 10 - 24 | 46,89 € |
| 25 + | 45,59 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 872-1578
- Référence fabricant:
- PT06A-8-2P(SR)
- Fabricant:
- Amphenol Socapex
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Amphenol Socapex | |
| Number of Contacts | 2 | |
| Gender | Male | |
| Contact Gender | Male | |
| Voltage Rating | 1 kV ac | |
| Shell Size | 8 | |
| Mounting Type | Cable Mount | |
| Military Standard | MIL-DTL-26482 | |
| Termination Method | Solder | |
| Mating Type | Bayonet | |
| Connector Size | Miniature | |
| Body Orientation | Straight | |
| Series | PT | |
| Housing Material | Aluminium | |
| Strain Relief | Yes | |
| Colour | Green | |
| Maximum Operating Temperature | +125°C | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Shell Plating | Cadmium | |
| Minimum Operating Temperature | -55°C | |
| Sélectionner tout | ||
|---|---|---|
Marque Amphenol Socapex | ||
Number of Contacts 2 | ||
Gender Male | ||
Contact Gender Male | ||
Voltage Rating 1 kV ac | ||
Shell Size 8 | ||
Mounting Type Cable Mount | ||
Military Standard MIL-DTL-26482 | ||
Termination Method Solder | ||
Mating Type Bayonet | ||
Connector Size Miniature | ||
Body Orientation Straight | ||
Series PT | ||
Housing Material Aluminium | ||
Strain Relief Yes | ||
Colour Green | ||
Maximum Operating Temperature +125°C | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Shell Plating Cadmium | ||
Minimum Operating Temperature -55°C | ||
Non conforme
Amphenol PT Series Connectors
The Amphenol PT series connectors, manufactured in accordance with MIL-DTL-26482 Series 1, is a range of high density circular connectors featuring a bayonet coupling mechanism for quick connect and disconnect. A wide range of Insert arrangements are available offering both power and signal contacts from 2 through to 61 circuits. The Amphenol PT series connectors are inter-mountable and interchangeable with other MIL-DTL-26482 connectors.
PT Solder is UL Approved Under File #E115497
Aluminum Shell Components For The Series
5 Key/ Keyway Polarisation With Bayonet Lock Coupling
Wide Range of Shell Sizes (8 Through 24)
Aluminum Shell Components For The Series
5 Key/ Keyway Polarisation With Bayonet Lock Coupling
Wide Range of Shell Sizes (8 Through 24)
Amphenol PT Series Connectors
