Amphenol, PT 8 Way Cable Mount MIL Spec Circular Connector Plug, Socket Contacts,Shell Size 16, Bayonet, MIL-DTL-26482

N° de stock RS:: 872-1566
Référence fabricant:: PT06A-16-8S(SR)
Fabricant:: Amphenol Socapex

Amphenol, PT 8 Way Cable Mount MIL Spec Circular Connector Plug, Socket Contacts,Shell Size 16, Bayonet, MIL-DTL-26482

Voir la catégorie

27 En stock pour livraison sous 1 jour(s)

Ajouté

Voir le panier

Prix la pièce

67,48 €

(TVA exclue)

81,65 €

(TVA incluse)

Unité	Prix par unité
1 +	67,48 €

N° de stock RS:: 872-1566
Référence fabricant:: PT06A-16-8S(SR)
Fabricant:: Amphenol Socapex

Documentation technique

Législations et de normes

Non conforme

Détails du produit

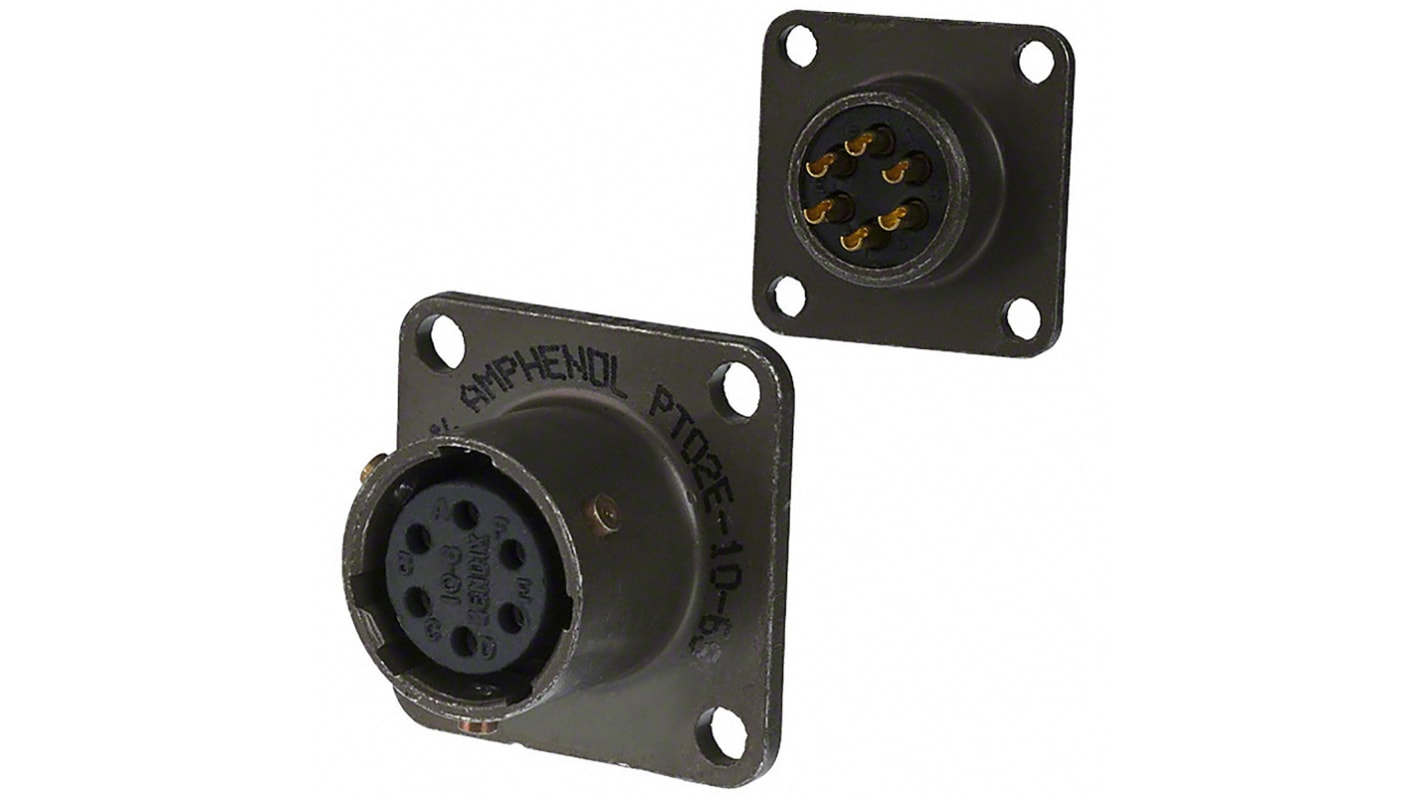

Amphenol PT Series Connectors

The Amphenol PT series connectors, manufactured in accordance with MIL-DTL-26482 Series 1, is a range of high density circular connectors featuring a bayonet coupling mechanism for quick connect and disconnect. A wide range of Insert arrangements are available offering both power and signal contacts from 2 through to 61 circuits. The Amphenol PT series connectors are inter-mountable and interchangeable with other MIL-DTL-26482 connectors.

PT Solder is UL Approved Under File #E115497
Aluminum Shell Components For The Series
5 Key/ Keyway Polarisation With Bayonet Lock Coupling
Wide Range of Shell Sizes (8 Through 24)

Amphenol PT Series Connectors

Spécifications

Attribut	Valeur
Number of Contacts	8
Gender	Male
Contact Gender	Female
Voltage Rating	1 kV ac
Shell Size	16
Mounting Type	Cable Mount
Military Standard	MIL-DTL-26482
Termination Method	Solder
Mating Type	Bayonet
Connector Size	Miniature
Body Orientation	Straight
Housing Material	Aluminium
Series	PT
Contact Material	Copper Alloy
Strain Relief	Yes
Colour	Green
Minimum Operating Temperature	-55°C
Maximum Operating Temperature	+125°C
Contact Plating	Gold
Shell Plating	Cadmium
