- N° de stock RS:
- 185-0159
- Fabricant:
- RS PRO
6 En stock, livraison sous 1 jour(s) (stock Europe)
1 En stock, livraison sous 3 à 5 jours (stock Europe)
Ajouté
Prix la pièce
9,16 €
(TVA exclue)
11,08 €
(TVA incluse)
Unité | Prix par unité |
1 - 9 | 9,16 € |
10 - 24 | 8,91 € |
25 - 49 | 8,69 € |
50 - 99 | 8,42 € |
100 + | 8,18 € |
- N° de stock RS:
- 185-0159
- Fabricant:
- RS PRO
Législations et de normes
Non conforme
- Pays d'origine :
- CN
Détails du produit

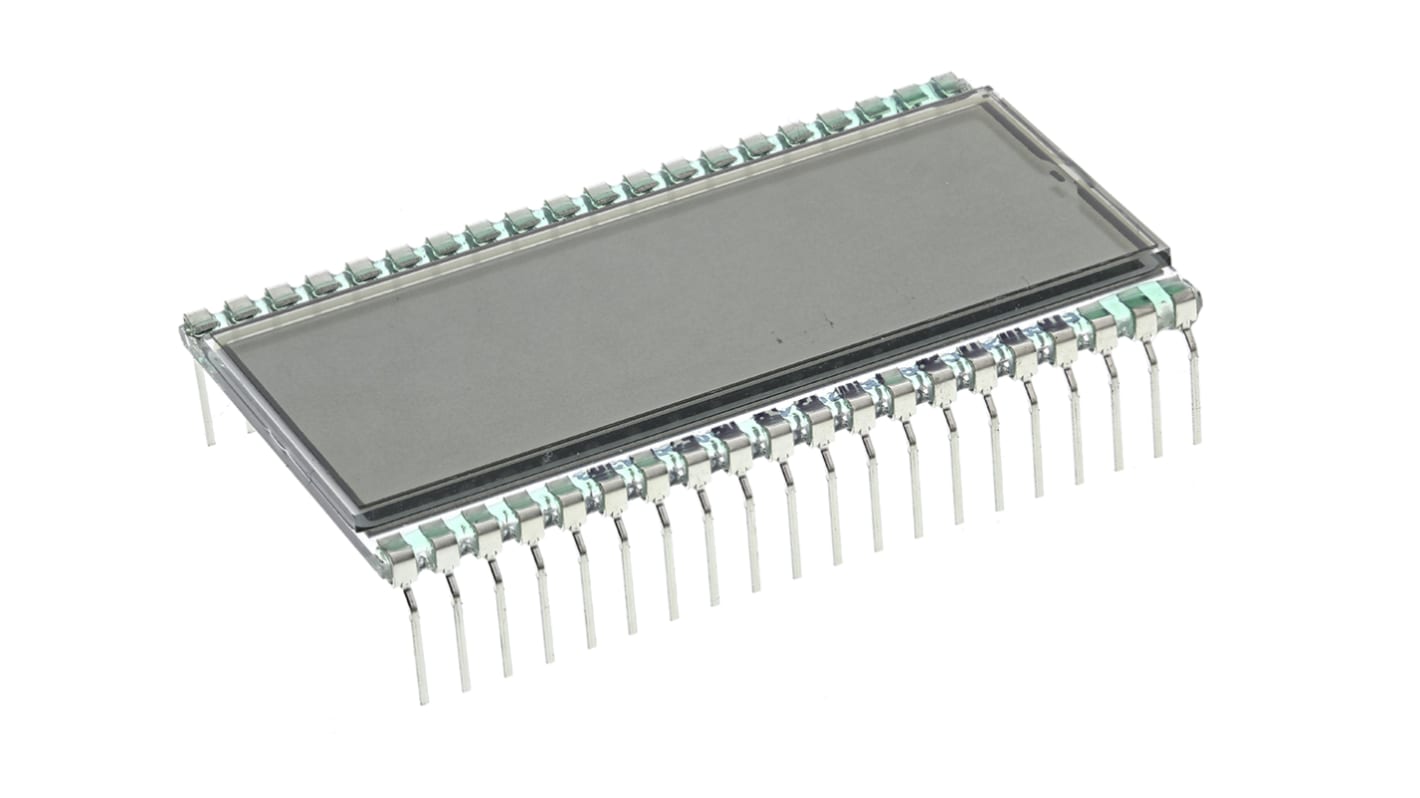

Direct-Drive 7-segment, Reflective & Transflective
Reflective,The reflective types are suitable for use in sunlight and low-light applications. Viewing is enhanced by direct sunlight. Transflective,The transflective types have the ability to be backlit making them ideal for use in low-light or no-light conditions. Suitable LED backlight panels are available: Refer to Accessories range.
Extremely low-power
Ideal for battery-powered equipment
Standard 7-segment format with inter-digit decimal points and alternate inter-digit colons
Black segments on a silver background
Wide viewing angle
Supplied as a flat glass plate with rigid pins in a DIL package format
Ideal for battery-powered equipment
Standard 7-segment format with inter-digit decimal points and alternate inter-digit colons
Black segments on a silver background
Wide viewing angle
Supplied as a flat glass plate with rigid pins in a DIL package format
Caution
Observe ANTI-STATIC precautions when storing or handling these LCD modules.
Spécifications
Attribut | Valeur |
---|---|
Display Type | 7-Segment |
Character Matrix | 1 Row by 3-1/2 Characters |
Characters per Row | 3-1/2 |
Character Rows | 1 |
Character Width | 7mm |
Character Height | 12.7mm |
Viewing Area Width | 47mm |
Viewing Area Height | 18.8mm |
Viewing Area Dimensions | 47 x 18mm |
External Depth | 2.8mm |
Backlight Type | LED |
Illumination Colour | Black |
Background Colour | Grey |
External Dimensions | 50.8 x 2.8 x 30.5mm |
External Height | 30.5mm |
External Width | 50.8mm |
Display Mode | Transflective |
Display Matrix Technology | TN |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +80°C |
Operating Temperature Range | -30 → +80°C |
Series | PHT |
