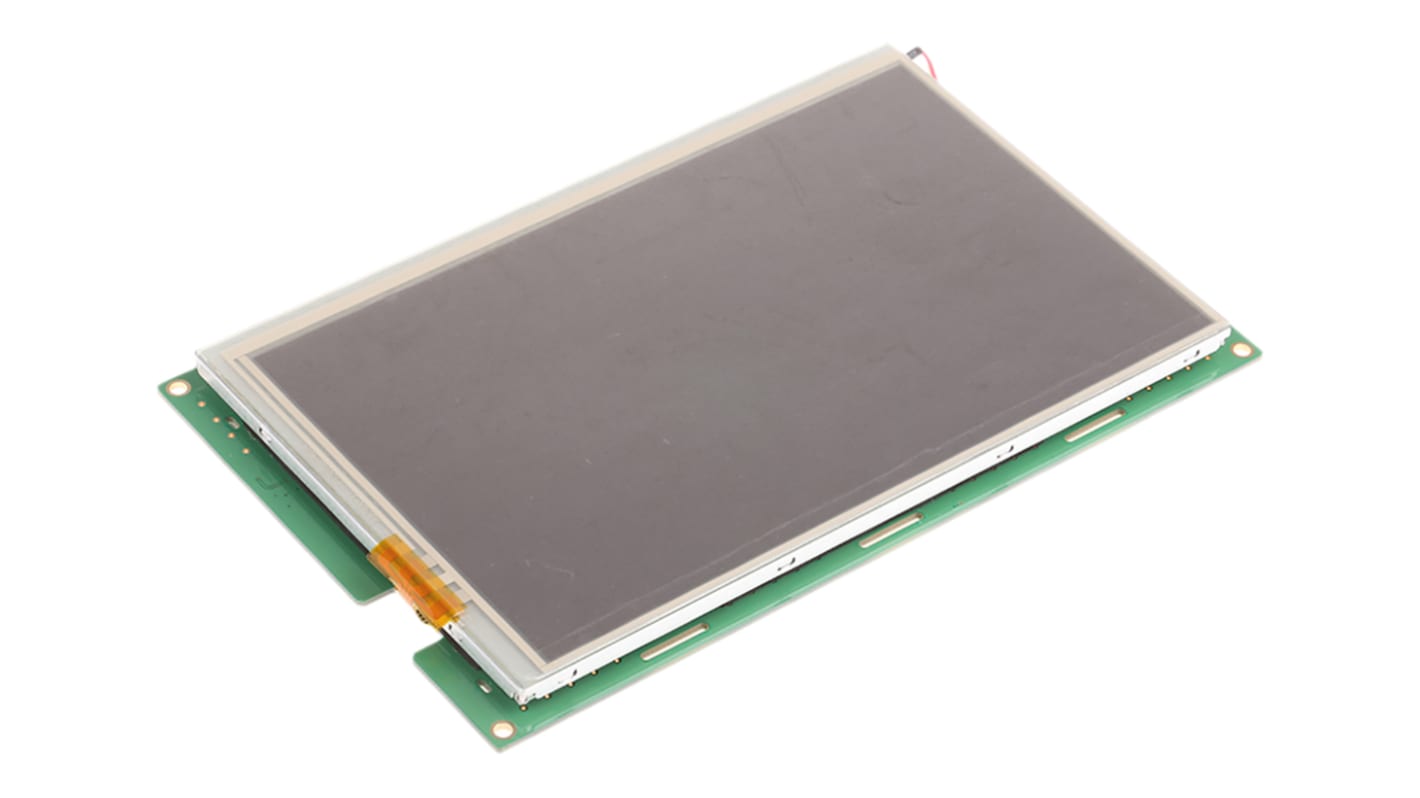

Ampire AM800480R2TMQW-TU0H TFT LCD Colour Display / Touch Screen, 7in WVGA, 800 x 480pixels
- N° de stock RS:
- 798-3924
- Référence fabricant:
- AM800480R2TMQW-TU0H
- Fabricant:
- Ampire
4 En stock pour livraison sous 1 jour(s)
Ajouté
Prix la pièce
396,98 €
(TVA exclue)
480,35 €
(TVA incluse)
| Unité | Prix par unité |
| 1 - 4 | 396,98 € |
| 5 + | 388,60 € |
- N° de stock RS:
- 798-3924
- Référence fabricant:
- AM800480R2TMQW-TU0H
- Fabricant:
- Ampire
Documentation technique
Législations et de normes
Détails du produit
Ampire colour TFT-LCD UART Touch Screens
A range of touchscreen TFT-LCD display panels with integrated on-board processing and memory (128MB). Images and fonts can be stored on-board and vector graphics and animations can be drawn using simple code to vastly reduce data transfer, strain on CPU and time development code.
- No controller board required
- LCD panels with driving circuit, LVDS interface and touch
- White LED backlight
- Display up to 65,000 colours (10.4" screen has up to 262K colours)
- Antiglare coating
- UART (Universal Asynchronous Receiver/Transmitter), RS-232 and USB interface
- Maximum operating temperature range: -20 to +70°C
- LCD panels with driving circuit, LVDS interface and touch
- White LED backlight
- Display up to 65,000 colours (10.4" screen has up to 262K colours)
- Antiglare coating
- UART (Universal Asynchronous Receiver/Transmitter), RS-232 and USB interface
- Maximum operating temperature range: -20 to +70°C
Intelligent Display Solutions Touchscreens
Spécifications
Attribut | Valeur |
|---|---|
| Diagonal Display Size | 7in |
| Interface Type | CMOS, UART |
| Resolution | 800 x 480pixels |
| Touch Screen | Yes |
| Viewing Area Dimensions | 91 x 152mm |
| Touch Screen Type | Resistive |
| Supply Voltage | 4.6 → 26 V |
| Backlight Type | LED |
| Display Mode | Transmissive |
| AC or DC Input Voltage | dc |
| Dimensions | 178 x 110 x 19.8mm |
| Display Matrix Technology | TFT |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Graphics Array Type | WVGA |
| Brightness | 400cd/m² |
| Depth | 19.8mm |
| Response Time | 30ms |
| Height | 110mm |
| Contrast Ratio | 250:1 |
| Width | 178mm |
| Number of Colours | 65,536 |
| Operating Temperature Range | -20 → +70°C |
| Viewing Area Width | 152.4mm |
| Aspect Ratio | 5:3 |
| Viewing Area Height | 91.44mm |
