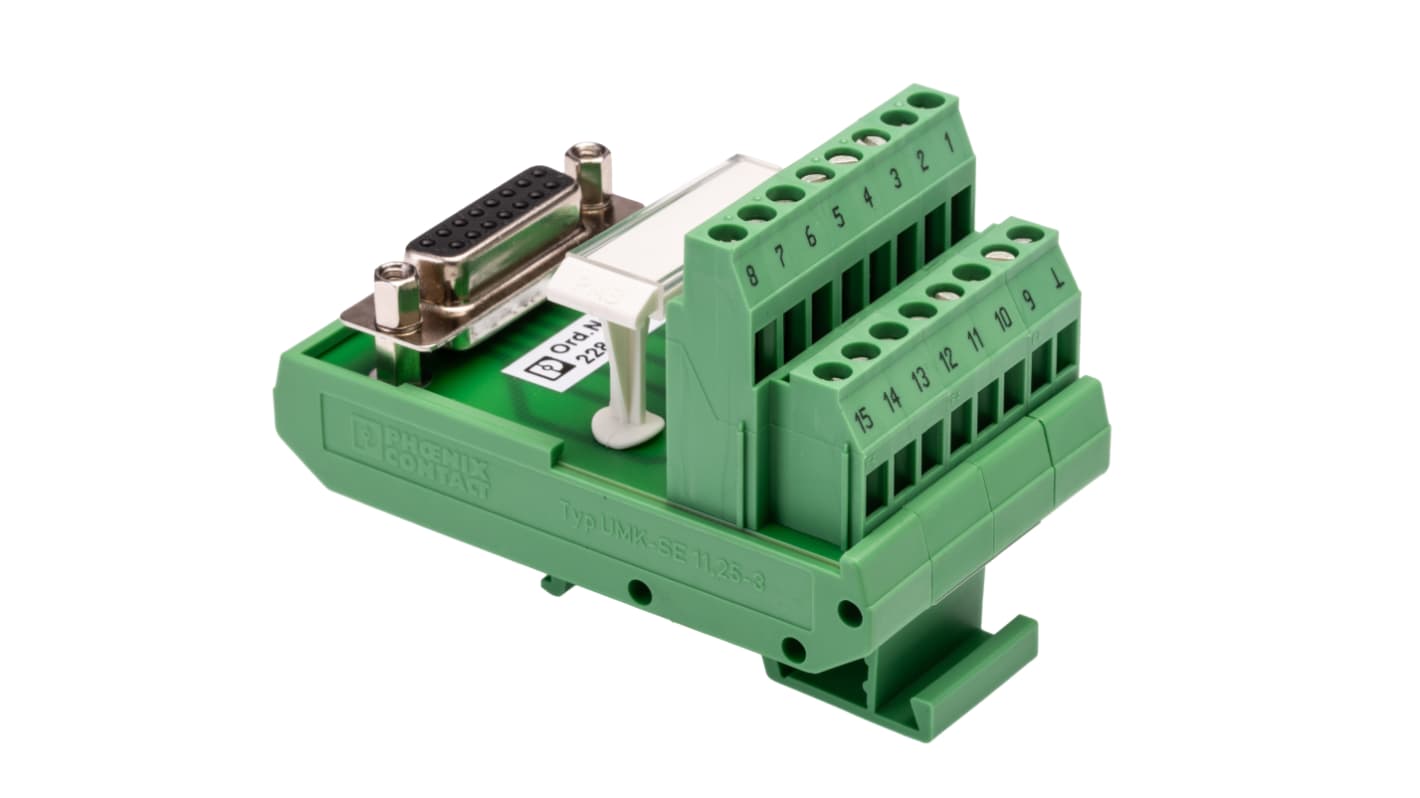

Phoenix Contact FLKM-D15 SUB/B Series 15-Contact Female Interface Module, D-sub Connector, DIN Rail Mount, 2.5A
- N° de stock RS:
- 868-979
- Référence fabricant:
- 2281199
- Fabricant:
- Phoenix Contact
2 En stock, livraison sous 1 jour(s) (stock Europe)
7 En stock, livraison sous 3 à 5 jours (stock Europe)
Ajouté
Prix la pièce
62,90 €
(TVA exclue)
76,11 €
(TVA incluse)
| Unité | Prix par unité |
| 1 - 4 | 62,90 € |
| 5 - 9 | 59,73 € |
| 10 + | 56,60 € |
- N° de stock RS:
- 868-979
- Référence fabricant:
- 2281199
- Fabricant:
- Phoenix Contact
Législations et de normes
- Pays d'origine :
- DE
Détails du produit
Phoenix Contact D-Sub Interface Modules
A range of VARIOFACE modules with screw connection and D-Subminiature pin strips from Phoenix Contact designed to mount on NS 35/7.5 or NS 32 DIN rails. The screw terminal interface modules with connectors are suitable for interfacing electrical cabling to I/O cards and electronic equipment.
Features and Benefits
• Suitable for Cable CSA: (Solid)0.2 to 4mm², (Stranded)0.2 to 2.5 mm²
• IP 20 rating
• Available with 9 to 37 contacts
• Male and female versions available
• Operating temperature range of -20°C to +50°C
• IP 20 rating
• Available with 9 to 37 contacts
• Male and female versions available
• Operating temperature range of -20°C to +50°C
Spécifications
Attribut | Valeur |
|---|---|
| Gender | Female |
| Wire Size | 24 → 12 AWG |
| Number of Contacts | 15 |
| Connector Type | D-sub |
| Mounting Type | DIN Rail Mount |
| Test Proof Voltage | 800V ac |
| Voltage Rating | 25 V ac, 60 V dc |
| Current Rating | 2.5A |
| Cable CSA | 0.2 → 4mm² |
| Dimensions | 45 x 58.5 x 77mm |
| Depth | 77mm |
| Length | 45mm |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -20°C |
| Width | 58.5mm |
| Series | FLKM-D15 SUB/B |
