- N° de stock RS:
- 506-6055
- Référence fabricant:
- 0999000017400
- Fabricant:
- HARTING
En cours d'approvisionnement -expédition le 14/05/2024, pour livraison dès le lendemain
Ajouté
Prix la pièce
110,01 €
(TVA exclue)
133,11 €
(TVA incluse)
Unité | Prix par unité |
1 - 4 | 110,01 € |
5 + | 99,01 € |
- N° de stock RS:
- 506-6055
- Référence fabricant:
- 0999000017400
- Fabricant:
- HARTING
Documentation technique
Législations et de normes
Statut RoHS non applicable
- Pays d'origine :
- DE
Détails du produit
Crimp Tooling for Multicontact
4 contact chambers which will accommodate coaxial contacts, or high voltage contacts (Harting tool Pt No 09990000001 is required for the HV contacts – not currently supplied by RS)
Male insert with protection collar
Polarisation of module
Mating cycles ≥500
Both male and female modules may be mounted in the same frame
Male insert with protection collar
Polarisation of module
Mating cycles ≥500
Both male and female modules may be mounted in the same frame

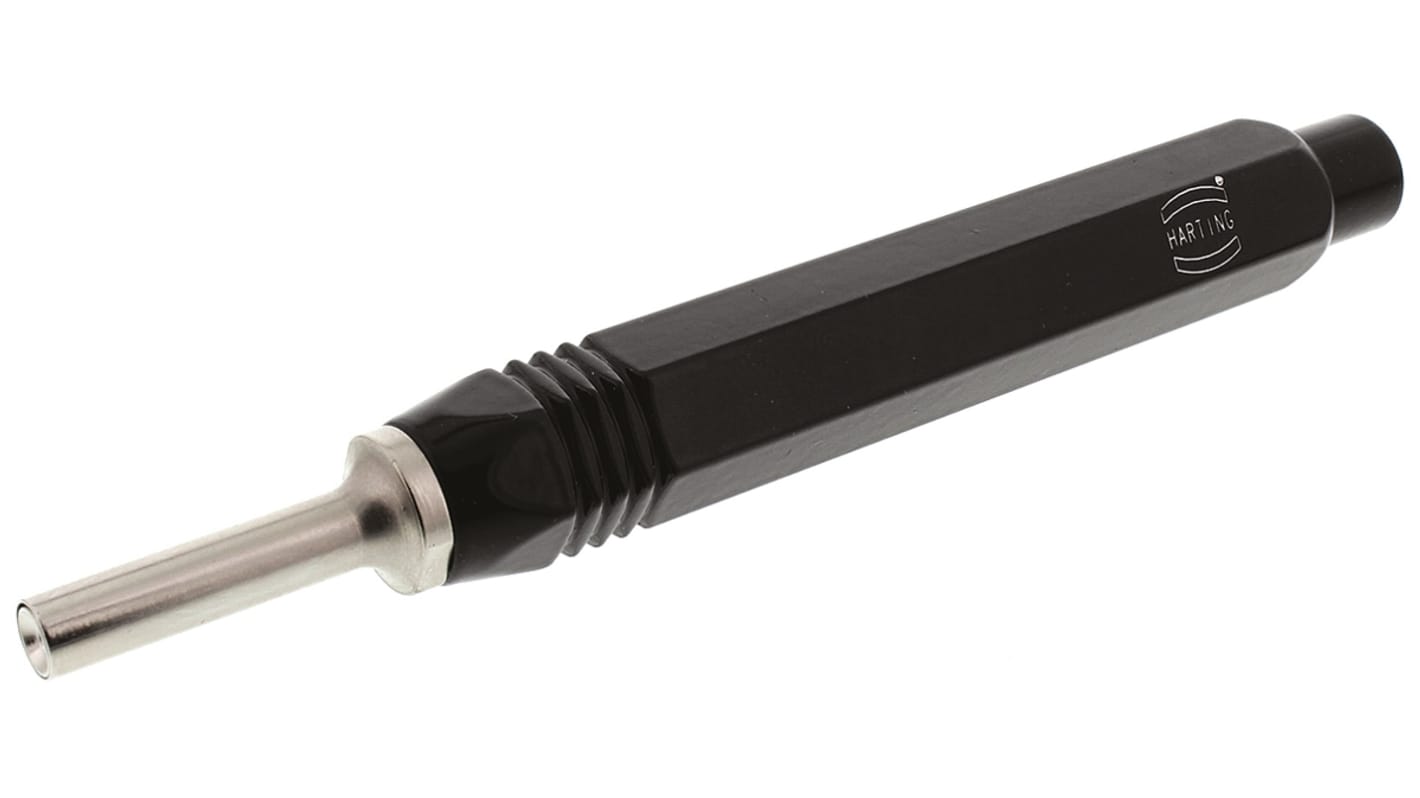

For removing contacts in the Modular Multicontact insert module
Harting Han® Modular
The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.
Spécifications
Attribut | Valeur |
---|---|
Tool Type | Extraction Tool |
Contact Type | Crimp |
Series | MultiContact |
Overall Length | 116 mm |
Tip Width | 5.2mm |
Tip Length | 24mm |
