OKW NET-BOX Plastic Enclosure, IP65, 220 x 220 x 50.5mm

  • N° de stock RS 819-4015
  • Référence fabricant B3222101 + B3322151
  • Fabricant OKW
Documentation technique
Législations et de normes
Déclaration de conformité RoHS
Pays d'origine : DE
Détails du produit

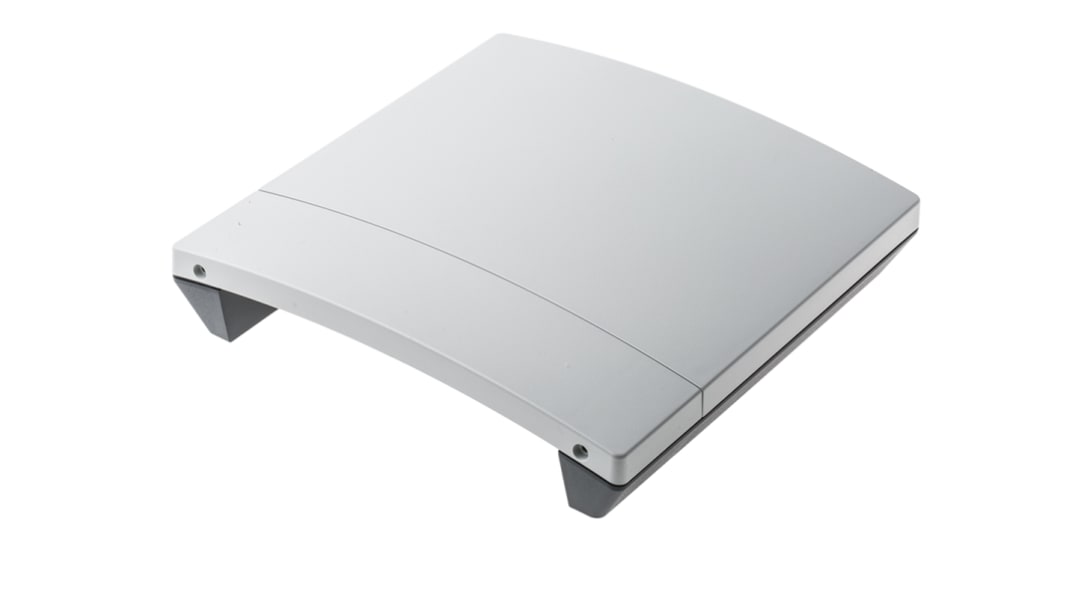

NET-BOX Wall Mounted Enclosure

The OKW NET-BOX is a sleek new range of wall mounted enclosures for data and control electronics. These advanced contoured enclosures consist of a base section, front cover and lid. They are assembled using Torx T10 security screws. A unique feature of these ABS enclosures is the inset connector mounting face. This allows unsightly connections and cables to be hidden under the front lid of the enclosure for a professional installation.
It is ideal for central control units, data acquisition systems, data systems engineering, measuring and control technology, supervision terminals and access control, medical and wellness technology.

Stylish curved top section which can be fitted with LEDs, displays and switches
Inset panel on the underside provides discreet mounting for connections (RJ45, RS232, HDMI, USB, power inlets, etc)
Connectors and cables are hidden under the front lid
Simple 3 part assembly - bottom part, front cover and front lid
No visible fixing screws on the front, just two on the underside of the lid
Screw pillars in the bottom part for mounting PCBs and assemblies
3 point wall mounting system, the main electronics section stays closed, only the front lid has to be refitted after installation
Moulded in flame retardant material and can be sealed to IP65 for outdoor applications
Top cover and lid are light grey, RAL 7035

Supplied with

anti-tamper Torx T10 assembly screws and IP65 sealing kit.

Spécifications
Attribut Valeur
Body Material Polycarbonate
External Length 220 mm
External Height 50.5 mm
External Width 220 mm
External Dimensions 220 x 220 x 50.5mm
IP Rating IP65
Colour Grey
Lid Colour Grey
Shielded No
Series NET-BOX
