- N° de stock RS:
- 756-9815
- Référence fabricant:
- 3241124
- Fabricant:
- Rittal
2 En stock, livraison sous 1 jour(s) (stock Europe)
4 En stock, livraison sous 3 à 5 jours (stock Europe)
Ajouté
Prix la pièce
374,97 €
(TVA exclue)
453,71 €
(TVA incluse)
Unité | Prix par unité |
1 - 9 | 374,97 € |
10 - 24 | 332,22 € |
25 - 49 | 323,22 € |
50 + | 314,60 € |
- N° de stock RS:
- 756-9815
- Référence fabricant:
- 3241124
- Fabricant:
- Rittal
Documentation technique
Législations et de normes
- Pays d'origine :
- DE
Détails du produit

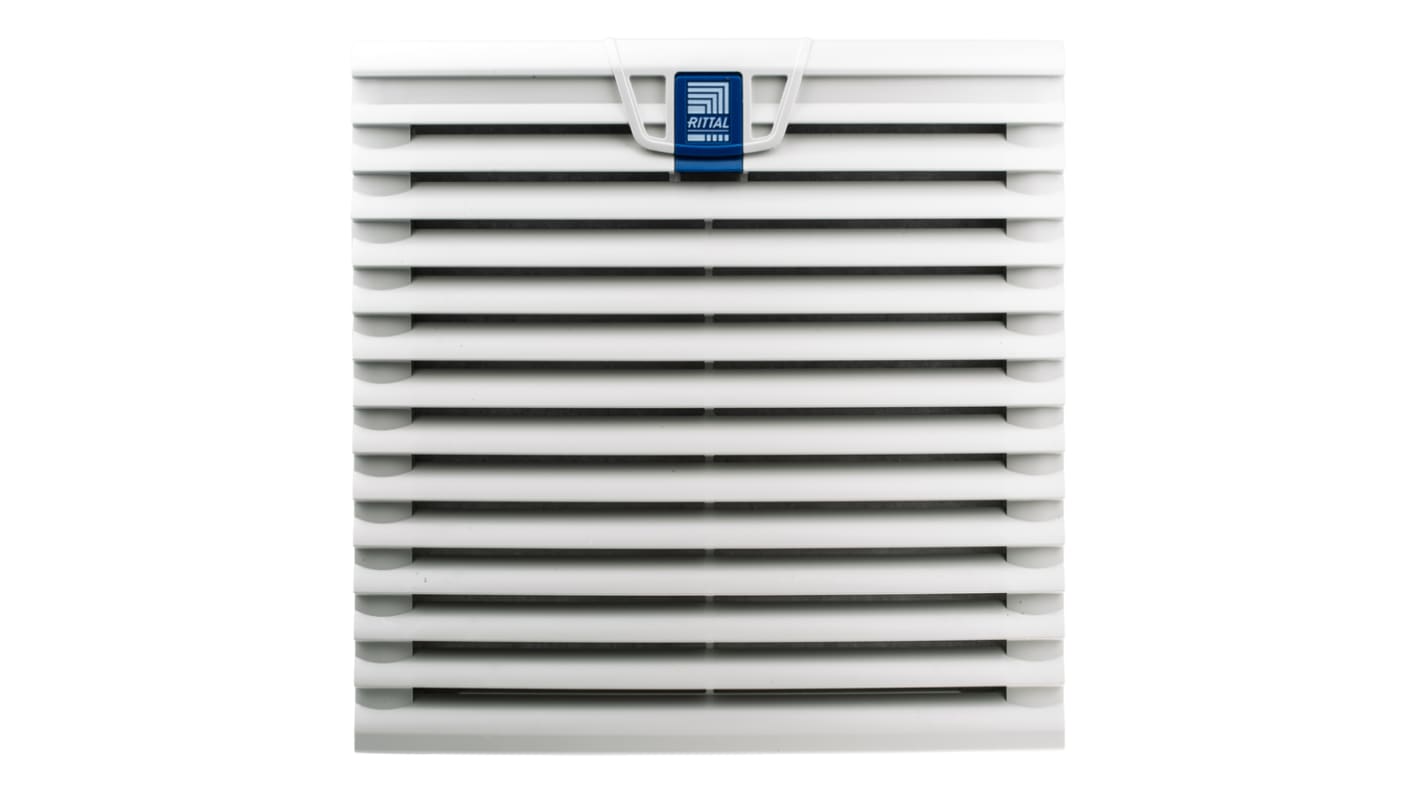

Rittal Filter Fan, 24V DC, 255mm Height - TopTherm Series - 3241124
This fan-and-filter unit from Rittal uses ambient air to cool the inside of your enclosure. By supplying unfiltered air at a rate of 230m³/h (cubic metres per hour) and a filtered air flow rate of 205m³/h, it ensures efficient cooling for your electronics. The fan's built-in filter prevents airborne particles from entering your enclosure to minimise the risk of damage to your equipment. Thanks to its low operational noise level of just 54dB (decibels), the fan won't add excessive noise to your work environment.
Features & Benefits
Easily cleans with a vacuum cleaner and non-flammable detergent for simple maintenance
IP54 (ingress protection) rating means it's protected against dust and water sprays from all directions
Ball bearing joint allows you to adjust the direction of the air flow for versatility
Wide operating temperature range of -30°C to +55°C for use in demanding environments
IP54 (ingress protection) rating means it's protected against dust and water sprays from all directions
Ball bearing joint allows you to adjust the direction of the air flow for versatility
Wide operating temperature range of -30°C to +55°C for use in demanding environments
Applications
Office server systems
Energy distribution systems
Electronics industry
Energy distribution systems
Electronics industry
How long will this filter fan last?
This filter fan has a robust service life of 75,000 hours, making it a long-lasting choice.
Spécifications
Attribut | Valeur |
---|---|
Unimpeded Air Flow | 230m³/h |
Noise Level | 54dB |
Filtered Air Flow | 205m³/h |
Input Current | 200mA |
Input Power Rating | 25W |
AC or DC Operation | DC |
Face Dimensions | 255 x 255mm |
Installation Depth | 107mm |
Supply Voltage | 24 V dc |
Face Height | 255mm |
Face Width | 255mm |
IP Rating | IP54 |
Configuration | Square |
