- N° de stock RS:
- 103-421
- Référence fabricant:
- FLH100 17010005007
- Fabricant:
- Pfannenberg
26 En stock, livraison sous 1 jour(s) (stock Europe)
63 En stock, livraison sous 3 à 5 jours (stock Europe)
Ajouté
Prix la pièce
60,44 €
(TVA exclue)
73,13 €
(TVA incluse)
Unité | Prix par unité |
1 - 9 | 60,44 € |
10 - 24 | 58,39 € |
25 - 49 | 55,36 € |
50 - 99 | 51,19 € |
100 + | 46,04 € |
- N° de stock RS:
- 103-421
- Référence fabricant:
- FLH100 17010005007
- Fabricant:
- Pfannenberg
Législations et de normes
- Pays d'origine :
- DE
Détails du produit

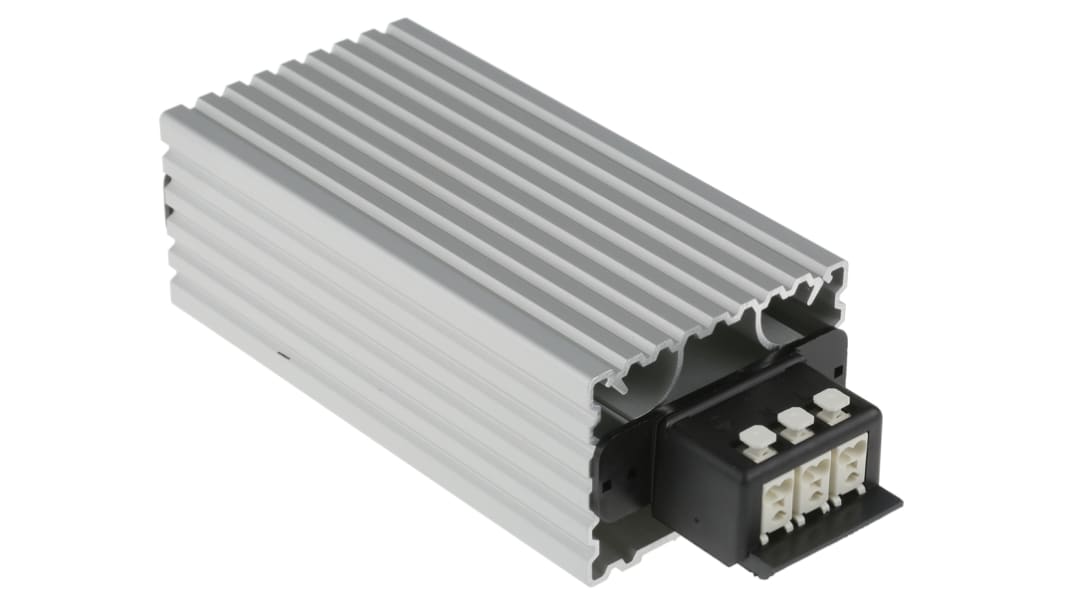

Radiant Heaters - Pfannenberg FLH Series
Suitable for both 50Hz or 60Hz operation
Duty cycle 100%
Heating element is PTC (positive temperature coefficient), temperature regulating
Can be mounted in any position (vertical preferred)
Made from extruded aluminium section, clear anodised
Plug-in terminal connection
Cable connection capacity: solid 2 x 0.5 - 2.5mm2; fine stranded (tinned, with bootlace ferrule or crimp pin) 2 x 0.5 - 1.5mm2
DIN-rail mounting (EN 50022 35mm)
Operating temperature -20°C to +70°C
Storage temperature -40°C to +70°C
Environmental rating IP20
Duty cycle 100%
Heating element is PTC (positive temperature coefficient), temperature regulating
Can be mounted in any position (vertical preferred)
Made from extruded aluminium section, clear anodised
Plug-in terminal connection
Cable connection capacity: solid 2 x 0.5 - 2.5mm2; fine stranded (tinned, with bootlace ferrule or crimp pin) 2 x 0.5 - 1.5mm2
DIN-rail mounting (EN 50022 35mm)
Operating temperature -20°C to +70°C
Storage temperature -40°C to +70°C
Environmental rating IP20
Note
Accessories available separately include thermostats FLZ510, FLZ520, FLZ530, hygrostat FLZ600
Approvals
UL
DIN Rail Mount Enclosure Heaters
Heaters specifically intended for anti-condensation and frost protection in control and equipment cabinets. All types are supplied with DIN rail mounting hardware.
Spécifications
Attribut | Valeur |
---|---|
Output Power | 100W |
Air Flow | 50 m³/h, 61m³/h |
Input Power Rating | 100W |
Supply Voltage | 110 → 250V ac |
Surface Temperature | 130°C |
Depth | 50mm |
Height | 140mm |
Width | 70mm |
