- N° de stock RS:
- 656-0924
- Référence fabricant:
- TK-4023-PK-RS
- Fabricant:
- Gemini
- N° de stock RS:
- 656-0924
- Référence fabricant:
- TK-4023-PK-RS
- Fabricant:
- Gemini
Documentation technique
Législations et de normes
Statut RoHS non applicable
- Pays d'origine :
- GB
Détails du produit

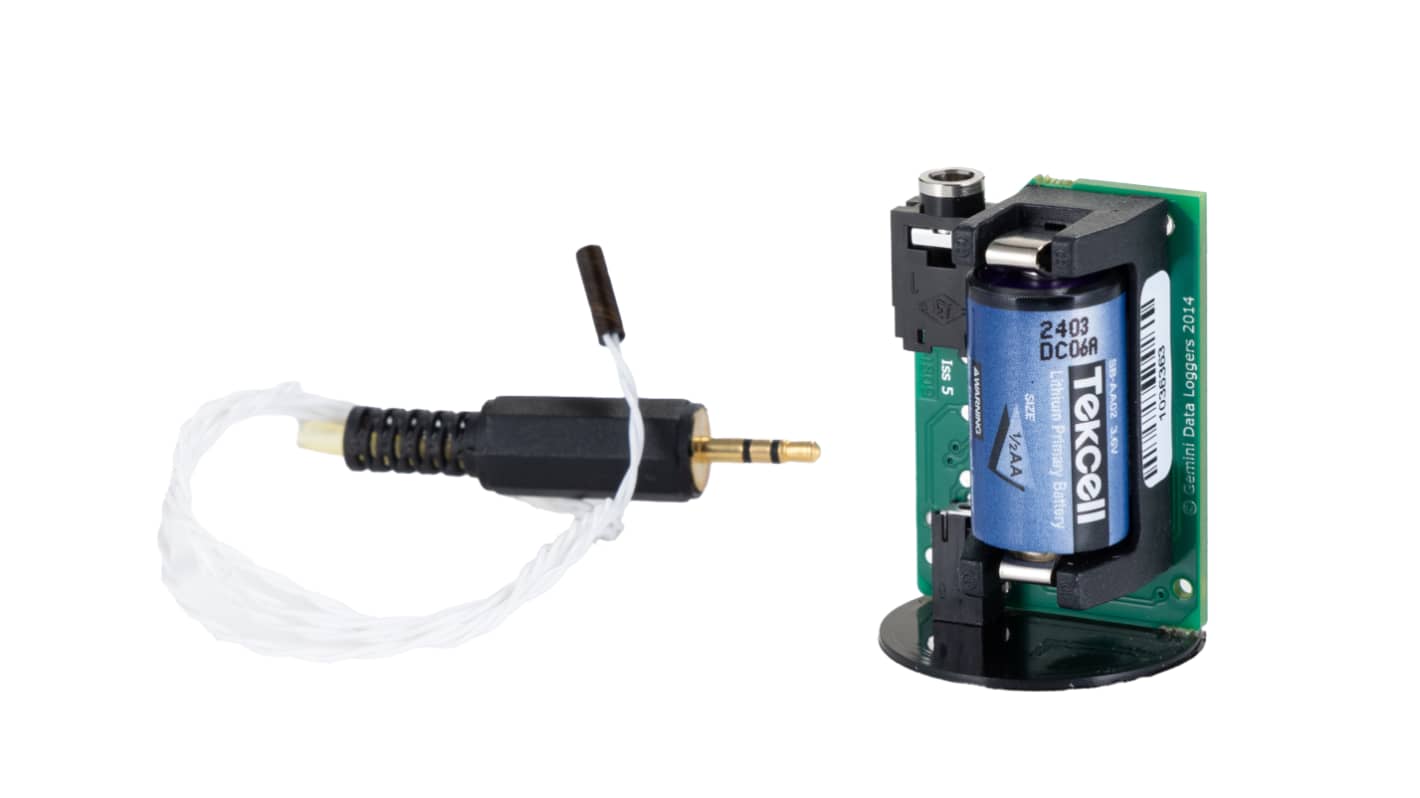

Gemini Data Logger
The Gemini Tinytag Talk 2s is single-channel a self-contained temperature data logger. It has delayed and triggered start with 3 stop options: stop when full, wrap-around and stop after n readings. It is supplied with an external probe allowing fast-changing temperatures in difficult to access areas to be accurately tracked.
Features and Benefits
High Accuracy
High Reading Resolution
Number of readings per channel is 16000
Fast Data Offload
Two user-programmable alarms
Low battery monitor
User-replaceable battery
Operating temperature ranges between -40°C and 85°C
High Reading Resolution
Number of readings per channel is 16000
Fast Data Offload
Two user-programmable alarms
Low battery monitor
User-replaceable battery
Operating temperature ranges between -40°C and 85°C
Applications
Building condition monitoring
Pharmaceutical storage
Dry food storage
Museum display and repository
Pharmaceutical storage
Dry food storage
Museum display and repository
Certifications
IP30 rated
CE certified
CE certified
Spécifications
Attribut | Valeur |
---|---|
Model Number | TK-4023 |
Number of Input Channels | 1 |
Measurement Parameters | Temperature |
Sensor Type | NTC |
Interface Type | Serial, USB |
Data Logger Type | Temperature |
Maximum Temperature Measurement | +125 °C |
Power Source | Battery |
Best Temperature Measurement Accuracy | ±0.4 °C |
IP Rating | IP30 |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Temperature Measurement Resolution | 0.05°C |
Battery Type | AA |
Battery Life | 2 Years |
Includes | Battery |
Number of Readings Per Channel | 16000 |
Alarm | Yes |
