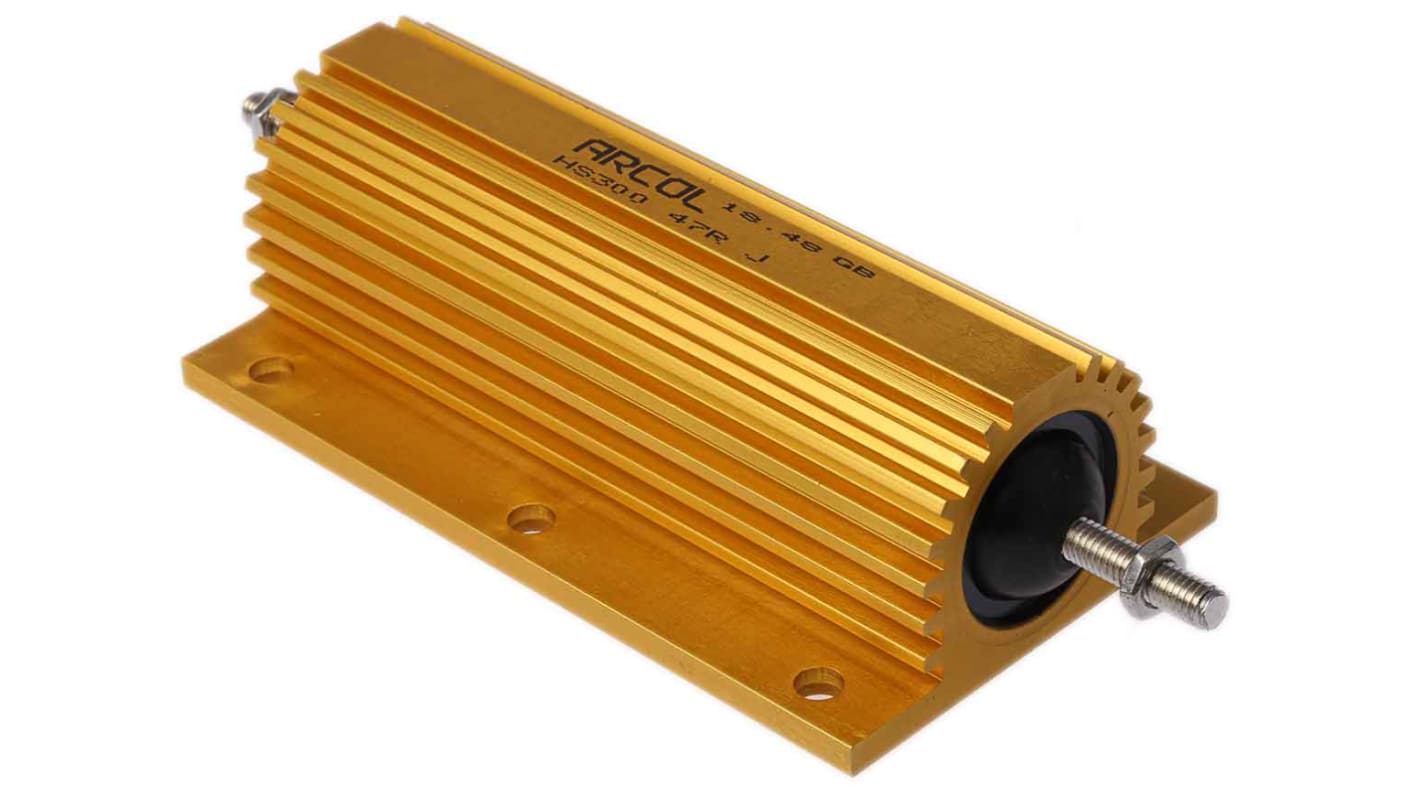

Arcol, 47Ω 300W Wire Wound Chassis Mount Resistor HS300 47R J ±5%
- N° de stock RS:
- 136-323
- Référence fabricant:
- HS300 47R J
- Fabricant:
- Arcol
132 En stock pour livraison sous 1 jour(s)
Ajouté
Prix la pièce
55,65 €
(TVA exclue)
67,34 €
(TVA incluse)
| Unité | Prix par unité |
| 1 - 4 | 55,65 € |
| 5 - 9 | 52,30 € |
| 10 - 24 | 47,86 € |
| 25 + | 45,08 € |
- N° de stock RS:
- 136-323
- Référence fabricant:
- HS300 47R J
- Fabricant:
- Arcol
Documentation technique
Législations et de normes
- Pays d'origine :
- GB
Détails du produit
300W Aluminium housed wirewound power resistor, HS Series
300Watt Aluminium housed power resistors which are manufactured to be compliant with the requirements of a MIL 18546, IEC 115 and are RoHS compliant.
Compact size for Power rating
Winding construction maximises High Pulse Capability
Winding construction maximises High Pulse Capability
Note
To achieve the given maximum performance rating of this power resistor, it is designed to be directly mounted on an appropriately matched heatsink and mounted using a thermal compound.
Spécifications
Attribut | Valeur |
|---|---|
| Resistance | 47Ω |
| Power Rating | 300W |
| Series | HS300 |
| Package/Case | Aluminium Housed |
| Tolerance | ±5% |
| Technology | Wire Wound |
| Termination Style | Axial |
| Minimum Temperature Coefficient | -100ppm/°C |
| Maximum Temperature Coefficient | +100ppm/°C |
| Dimensions | 41.8 x 184.4 x 72.5mm |
| Overall Width | 72.5mm |
| Overall Height | 41.8mm |
| Overall Length | 184.4mm |
