Yoke Cam Follower LFR5201-NPP, 12mm ID, 35mm OD

N° de stock RS:: 137-1840
Référence fabricant:: LFR5201-NPP
Fabricant:: INA

Yoke Cam Follower LFR5201-NPP, 12mm ID, 35mm OD

Voir la catégorie

Offre groupée disponible

Price la pièce**

39,72 €

(TVA exclue)

48,06 €

(TVA incluse)

5 En stock pour livraison sous 1 jour(s)*

* Les dates de livraison peuvent varier selon la quantité choisie et l'adresse de livraison.

FRAIS de livraison offerts pour toute commande de plus de 75,00 €

Vérifier le stock en temps réel

Unité	Prix par unité
1 - 4	39,72 €
5 - 9	38,59 €
10 - 24	37,58 €
25 +	36,58 €

**Prix donné à titre indicatif

N° de stock RS:: 137-1840
Référence fabricant:: LFR5201-NPP
Fabricant:: INA

Single and Double Row Yoke Type Track Rollers

INA from Schaeffler ball bearing track rollers are self-retaining, single or double row ball bearings with particularly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions.

The outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where they are inclined in relation to the mating track and edge stresses must be avoided.

Yoke type track rollers have outer rings with a crowned or cylindrical outside surface, inner rings and ball and cage assemblies with plastic cages. They are similar in construction to deep groove or angular contact ball bearings and are mounted on shafts or studs.

Features and Benefits

• Sealed on both sides

• LR6, LR60 and LR2 series are single row units

• LR50, LR52 and LR53 series are double row units

• LFR5, outer ring has a gothic arch profile

• Greased using a lithium soap grease to GA13

Product Application Information

Yoke type track rollers are suitable for applications such as cam gears, bed ways and conveying equipment.

Suffixes

2RSR - Lip seals on both sides, giving radial sealing action

2Z - Sealing shields on both sides

X - Cylindrical outside surface

2RS - Lip seals on both sides, giving axial sealing action

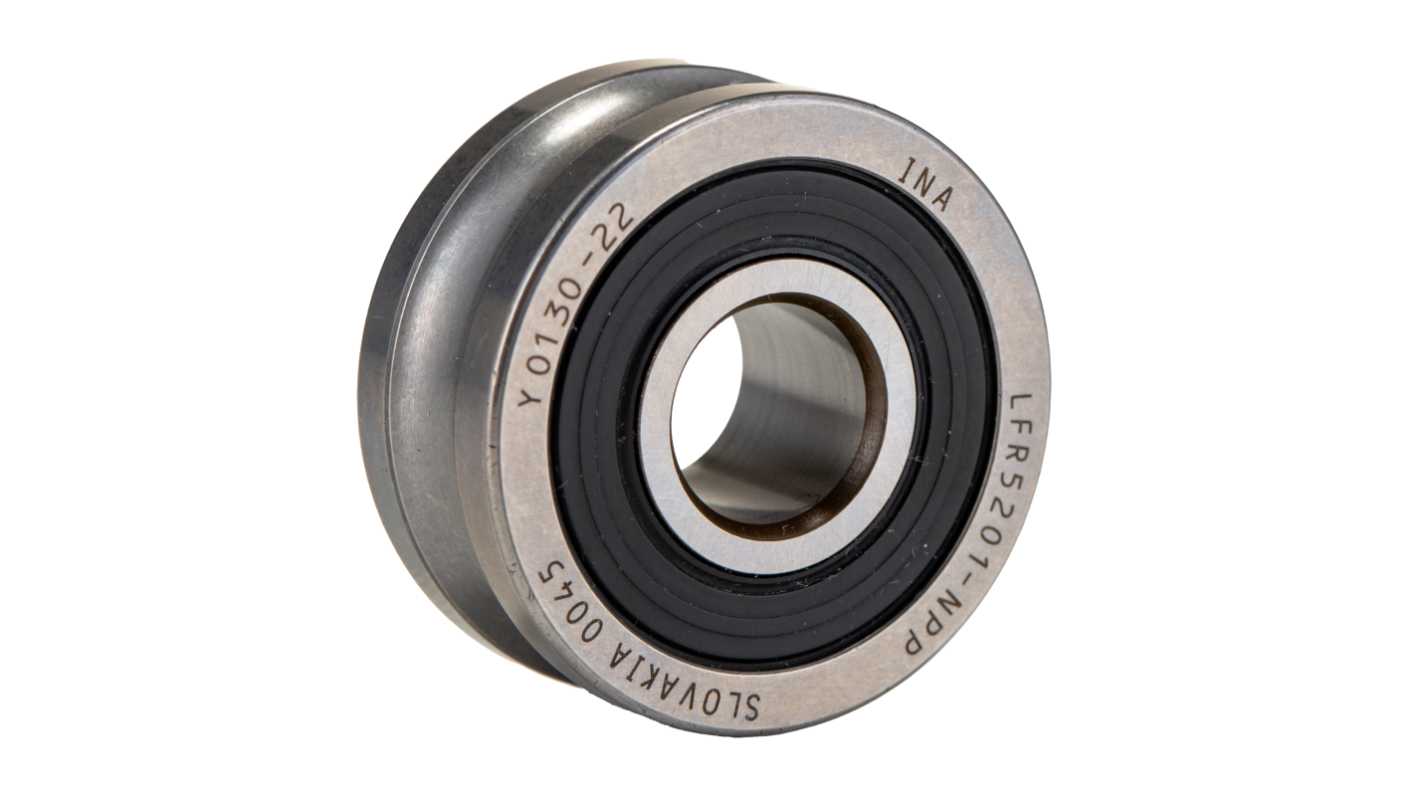

Schaeffler Cam Follower, 35mm Roller Diameter, 12mm Bore size - LFR5201-NPP

This cam follower is designed for high-performance applications in the automation and mechanical sectors. With a robust yoke type construction, it features a roller diameter of 35mm and a bore size of 12mm. The steel material ensures durability, allowing it to handle both static and dynamic loads.

Features & Benefits

• High static load rating of 5000N ensures reliability
• Dynamic load rating of 8400N supports demanding operations
• Yoke design facilitates easy mounting and alignment
• Steel construction provides strength and longevity
• Compact dimensions enhance versatility in installation

Applications

• Utilised in automation machinery for smooth movement
• Suitable for use in robotic arms requiring precise movement
• Ideal for conveyors needing reliable load-bearing components
• Employed in packaging machines to enhance operational efficiency

What is the significance of the roller diameter in this component?

The 35mm roller diameter optimises load distribution, reducing wear and prolonging life in high-load applications.

How does the design enhance performance in dynamic situations?

The high dynamic load rating indicates capability to withstand fluctuating forces, making it suitable for demanding conditions.

Can this cam follower be used in applications with space constraints?

Yes, its compact dimensions and yoke type design allow for installation in tighter spaces, maintaining functionality.

INA

Attribut	Valeur
Roller Diameter	35mm
Roller Length	15.9mm
Type	Yoke
Bore Size	12mm
Static Load Rating	5000N
Dynamic Load Rating	8400N
Material	Steel
