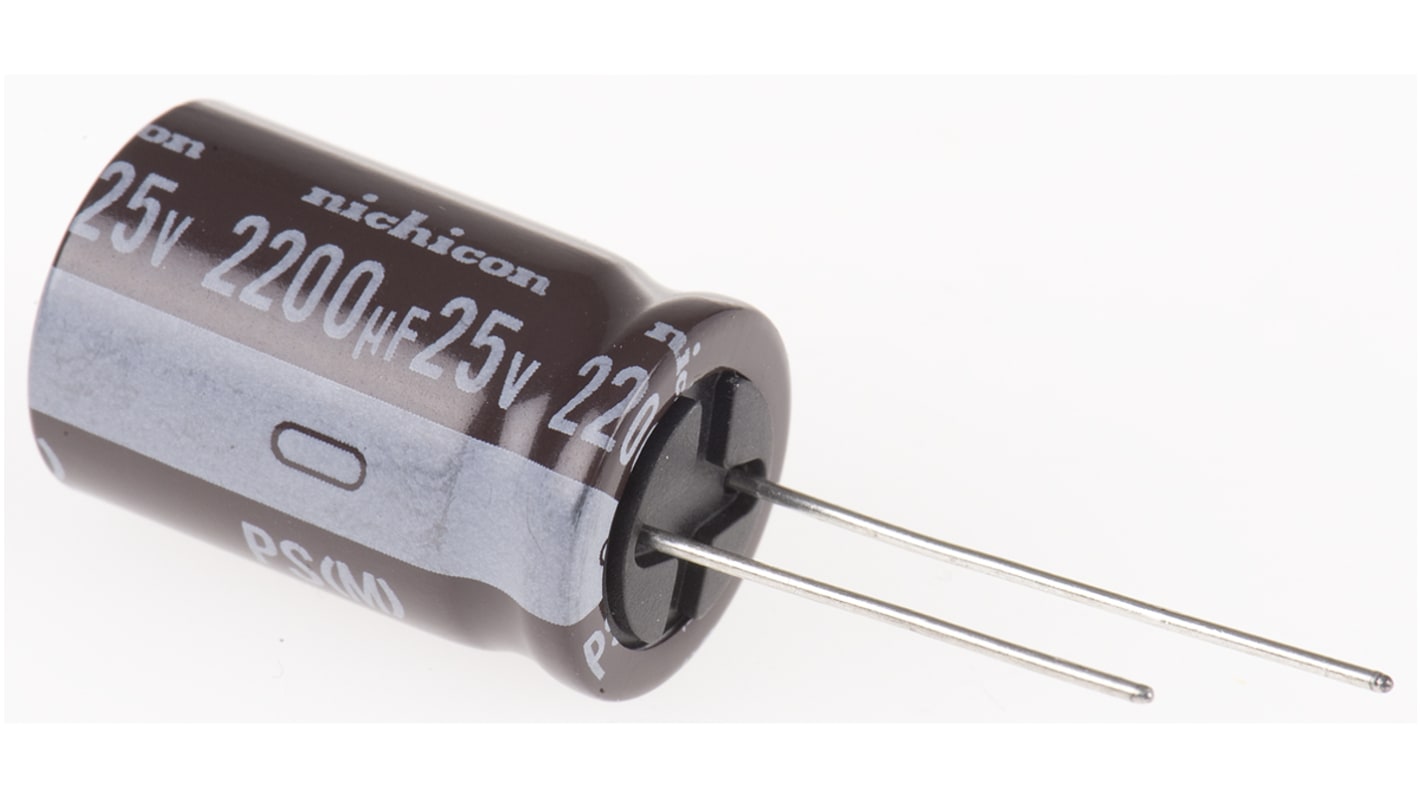

Nichicon 2200μF Aluminium Electrolytic Capacitor 25V dc, Radial, Through Hole - UPS1E222MHD
- N° de stock RS:
- 519-4100
- Référence fabricant:
- UPS1E222MHD
- Fabricant:
- Nichicon
10 En stock, livraison sous 1 jour(s) (stock Europe)
130 En stock, livraison sous 3 à 5 jours (stock Europe)
Ajouté
Prix L'unité (en paquet de 5)
0,974 €
(TVA exclue)
1,179 €
(TVA incluse)
| Unité | Prix par unité | le paquet* |
| 5 - 45 | 0,974 € | 4,87 € |
| 50 - 95 | 0,70 € | 3,50 € |
| 100 - 495 | 0,578 € | 2,89 € |
| 500 - 995 | 0,444 € | 2,22 € |
| 1000 + | 0,382 € | 1,91 € |
| *prix conseillé | ||
- N° de stock RS:
- 519-4100
- Référence fabricant:
- UPS1E222MHD
- Fabricant:
- Nichicon
Documentation technique
Législations et de normes
Détails du produit
Nichicon PS Series Capacitors
Nichicon PS Series Aluminium Electrolytic Capacitors are high reliability polymer capacitors which are rated up to 3000 hours. The PS series capacitors offer a high temperature range, high voltage, low impedance and high ripple current.
Features & Benefits:
High reliability
High ripple current
Long life up to 3000 hours
Lead free reflow soldering
Low ESR
High ripple current
Long life up to 3000 hours
Lead free reflow soldering
Low ESR
Wide temperature range
Miniature sized
Miniature sized
Spécifications
Attribut | Valeur |
|---|---|
| Capacitance | 2200µF |
| Voltage | 25V dc |
| Mounting Type | Radial, Through Hole |
| Technology | Aluminium Electrolytic |
| Dimensions | 16 (Dia.) x 25mm |
| Height | 25mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 16mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 3000h |
| Lead Pitch | 7.5mm |
| Series | PS |
| Leakage Current | 4 μA |
| Ripple Current | 1.9A |
| Tolerance | ±20% |
