KEMET 200μF Aluminium Electrolytic Capacitor 220V ac, Snap-In - 200MS22ACMA1STD
- N° de stock RS:
- 151-1546
- Référence fabricant:
- 200MS22ACMA1STD
- Fabricant:
- KEMET
Offre groupée disponible
Sous-total (1 unité)*
17,18 €
(TVA exclue)
20,79 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 19 unité(s) prête(s) à être expédiée(s)
- Plus 18 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 17,18 € |
| 10 - 24 | 16,15 € |
| 25 - 49 | 15,11 € |
| 50 - 99 | 14,09 € |
| 100 + | 12,79 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 151-1546
- Référence fabricant:
- 200MS22ACMA1STD
- Fabricant:
- KEMET
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | KEMET | |
| Capacitance | 200µF | |
| Voltage | 220V ac | |
| Mounting Type | Snap-In | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 39 x 116mm | |
| Height | 116mm | |
| Minimum Operating Temperature | -20°C | |
| Diameter | 39mm | |
| Maximum Operating Temperature | +60°C | |
| Lifetime | 500 h @ +60 °C | |
| Tolerance | 0 to +25% | |
| Series | MS | |
| Sélectionner tout | ||
|---|---|---|
Marque KEMET | ||
Capacitance 200µF | ||
Voltage 220V ac | ||
Mounting Type Snap-In | ||
Technology Aluminium Electrolytic | ||
Dimensions 39 x 116mm | ||
Height 116mm | ||
Minimum Operating Temperature -20°C | ||
Diameter 39mm | ||
Maximum Operating Temperature +60°C | ||
Lifetime 500 h @ +60 °C | ||
Tolerance 0 to +25% | ||
Series MS | ||
- Pays d'origine :
- CN

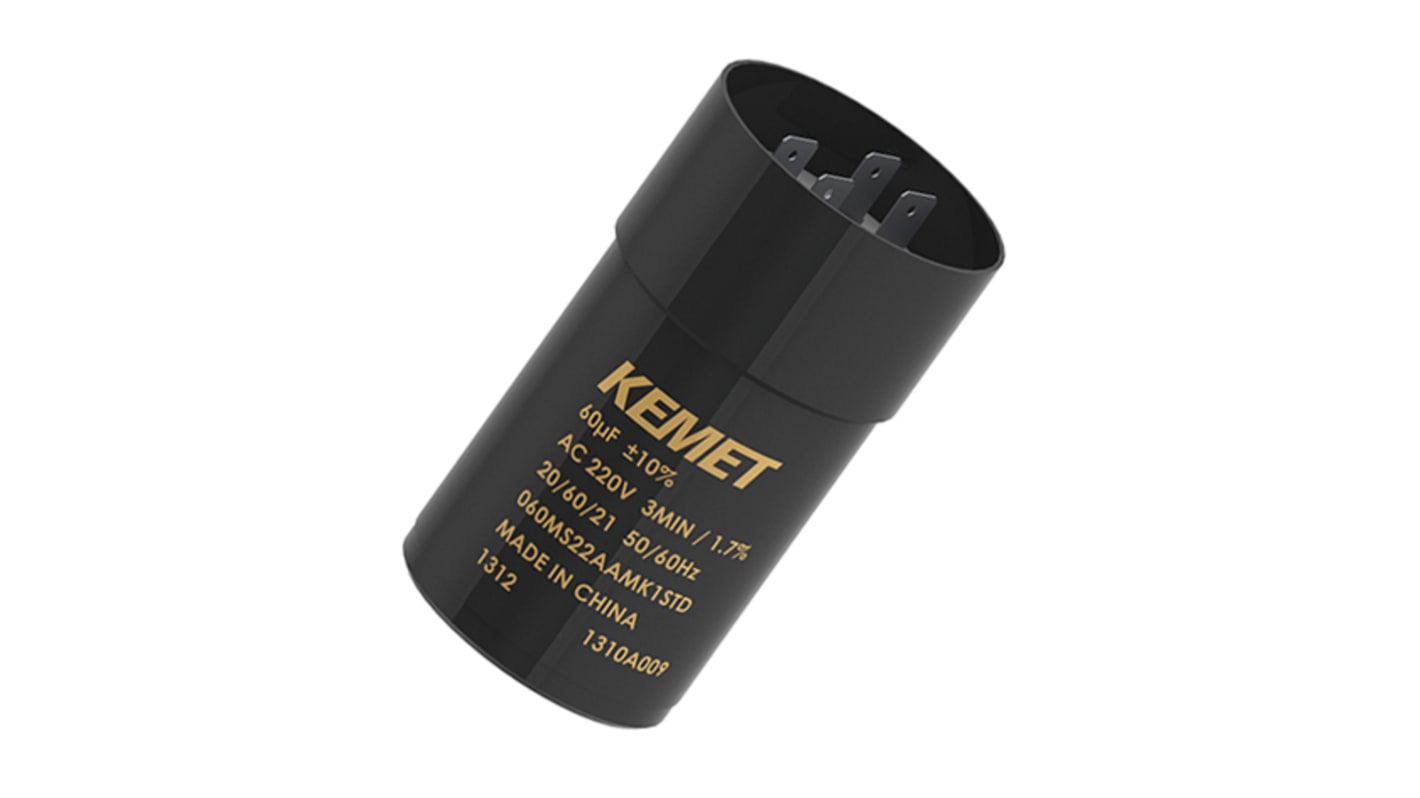

KEMET's Motor Start Capacitors are housed in a round molded case meeting creepage and clearance distances according to IEC 60335-1 and flammability ratings according to UL94-V1. They feature double 6.3 mm quick connect terminals.
KEMET's MS/MD Series of aluminum electrolytic capacitors are designed for intermittent duty only and capable of withstanding the AC voltage applied to the motor during starting. The capacitor construction is comprised of either double anode or O-style (double anode and floating cathode) windings, which are housed in a molded plastic case. KEMET's MD Series is VDE approved to IEC 60252-2 for the defined ratings.
Intermittent AC motor starting
6.3 mm double amp tags (quick connect types)
VDE approved to IEC 60252–2
6.3 mm double amp tags (quick connect types)
VDE approved to IEC 60252–2
