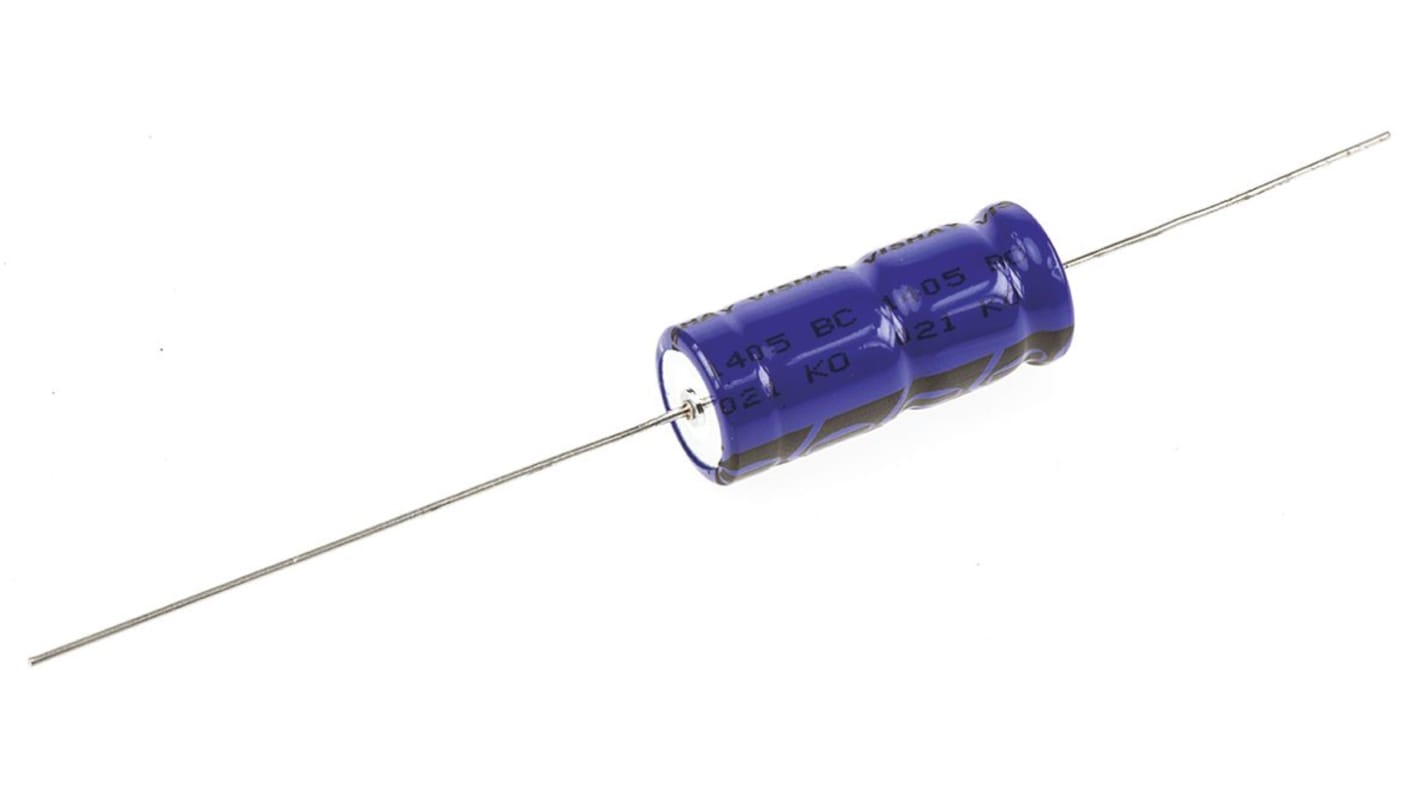

Vishay 2200μF Aluminium Electrolytic Capacitor 16V dc, Axial, Through Hole - MAL202115222E3
- N° de stock RS:
- 108-4891
- Référence fabricant:
- MAL202115222E3
- Fabricant:
- Vishay
Offre groupée disponible
Sous-total (1 paquet de 5 unités)*
18,35 €
(TVA exclue)
22,20 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 20 unité(s) prête(s) à être expédiée(s)
- Plus 580 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 90 unité(s) expédiée(s) à partir du 26 novembre 2025
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 5 - 20 | 3,67 € | 18,35 € |
| 25 - 45 | 2,938 € | 14,69 € |
| 50 - 120 | 2,57 € | 12,85 € |
| 125 - 245 | 2,386 € | 11,93 € |
| 250 + | 2,204 € | 11,02 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 108-4891
- Référence fabricant:
- MAL202115222E3
- Fabricant:
- Vishay
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Vishay | |
| Capacitance | 2200µF | |
| Voltage | 16V dc | |
| Mounting Type | Axial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 12.5 (Dia.) x 30mm | |
| Height | 30mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 12.5mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 2000 h, 5000 h, 8000 h, 200000 h | |
| Lead Pitch | 35mm | |
| Tolerance | ±20% | |
| Equivalent Series Resistance | 150mΩ | |
| Leakage Current | 74 μA | |
| Ripple Current | 1.04A | |
| Series | 021 ASM | |
| Sélectionner tout | ||
|---|---|---|
Marque Vishay | ||
Capacitance 2200µF | ||
Voltage 16V dc | ||
Mounting Type Axial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 12.5 (Dia.) x 30mm | ||
Height 30mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 12.5mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 2000 h, 5000 h, 8000 h, 200000 h | ||
Lead Pitch 35mm | ||
Tolerance ±20% | ||
Equivalent Series Resistance 150mΩ | ||
Leakage Current 74 μA | ||
Ripple Current 1.04A | ||
Series 021 ASM | ||
Vishay 021 ASM Series Aluminium Electrolytic Capacitors
021 ASM electrolytic capacitors from Vishay are constructed from a cylindrical aluminium case insulated with a blue sleeve. These electrolytic capacitors feature a non-solid electrolyte and are charge and discharge proof. 021 ASM electrolytic capacitors have a long lifespan between 2500 hours and 8000 hours at +85°C.
Features:
• Long useful life: 2500 h to 8000 h at 85 °C
• Miniaturized, high CV-product per unit volume
• Charge and discharge proof
• Taped versions up to case Ø 15 mm x 30 mm
available for automatic insertion
• Polarized aluminum electrolytic capacitors, non-solid
electrolyte
• Axial leads, cylindrical aluminum case, insulated with a
blue sleeve
• Mounting ring version not available in insulated form
• Miniaturized, high CV-product per unit volume
• Charge and discharge proof
• Taped versions up to case Ø 15 mm x 30 mm
available for automatic insertion
• Polarized aluminum electrolytic capacitors, non-solid
electrolyte
• Axial leads, cylindrical aluminum case, insulated with a
blue sleeve
• Mounting ring version not available in insulated form
Applications:
• General purpose, industrial, automotive, audio-video
• Coupling, decoupling, smoothing, filtering, buffering
• Portable and mobile equipment (small size, low mass)
• Low mounting height boards, vibration, and shock
Resistant
• Coupling, decoupling, smoothing, filtering, buffering
• Portable and mobile equipment (small size, low mass)
• Low mounting height boards, vibration, and shock
Resistant
Standards
CEI 384-4, DIN 41316
Axial 85°C
