Ansmann 18W Plug-In AC/DC Adapter 3V dc Output, 1.5A Output
- N° de stock RS:
- 702-3268
- Référence fabricant:
- 5311123
- Fabricant:
- Ansmann
41 En stock, livraison sous 1 jour(s) (stock Europe)
156 En stock, livraison sous 3 à 5 jours (stock Europe)
Ajouté
Prix la pièce
25,34 €
(TVA exclue)
30,66 €
(TVA incluse)
| Unité | Prix par unité |
| 1 - 4 | 25,34 € |
| 5 - 9 | 24,07 € |
| 10 - 24 | 22,81 € |
| 25 - 49 | 21,54 € |
| 50 + | 20,27 € |
- N° de stock RS:
- 702-3268
- Référence fabricant:
- 5311123
- Fabricant:
- Ansmann
Documentation technique
Législations et de normes
- Pays d'origine :
- CN
Détails du produit

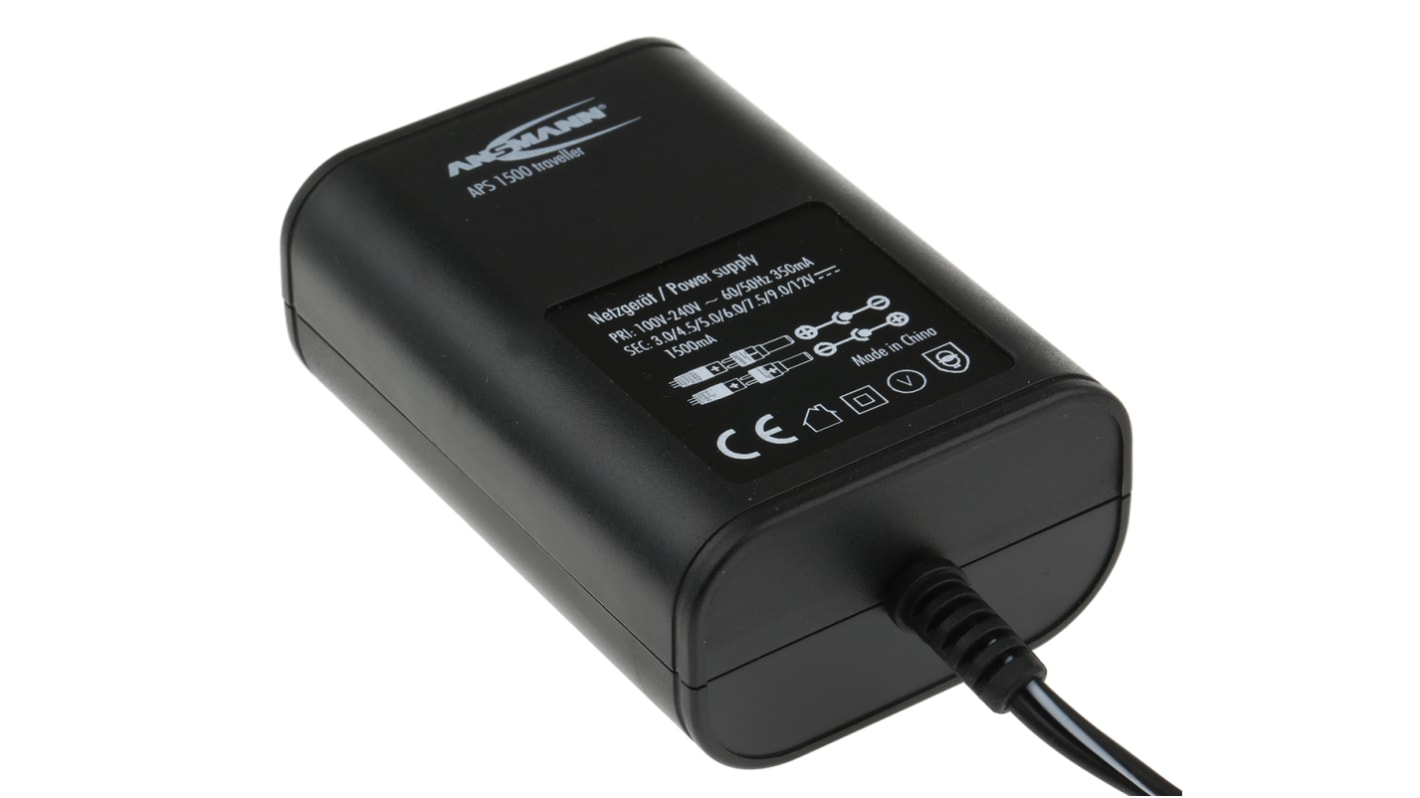

Ansmann Power Supply
The Ansmann APS1500 series plug-in power supply has a regulated output voltage within the range of 3VDC to 12VDC. This plug-top, adapter power supply has a selectable output voltage along with 7 interchangeable output connectors. It supports numerous applications due to the wide range of input (100-240V AC) that complies with the universal standard and changeable input plug for use in the UK, Europe, USA, Japan and Australia. It is ErP compliant and suitable for use with small electrical devices.
Note:
Conforms to energy-related product directive 2009/125/EC.
Note:
Conforms to energy-related product directive 2009/125/EC.
Features and Benefits
Output lead is 1.8m with polarity inverter and set of 7 connectors
Output power is 18W
Output current is 1500mA
Low standby power consumption is less than 0.3W
Supplied with 7 different output connectors
Regulated output voltage
short-circuit proof
Selectable output voltages via rotary switch
Double insulation
Output power is 18W
Output current is 1500mA
Low standby power consumption is less than 0.3W
Supplied with 7 different output connectors
Regulated output voltage
short-circuit proof
Selectable output voltages via rotary switch
Double insulation
Certifications
ErP level VI compliance
Spécifications
Attribut | Valeur |
|---|---|
| Adapter Type | Plug-In Adapter |
| Plug Type | Australia, European, UK, US |
| Output Voltage | 3 V dc, 4.5 V dc, 5 V dc, 6 V dc, 7.5 V dc, 9 V dc, 12V dc |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
| Output Current | 1.5A |
| Maximum Temperature | +25°C |
| Output Connector | Interchangeable |
| Input Connector | Universal Plug |
| Number of Outputs | 1 |
| Power Rating | 18W |
| Cable Length | 1.8m |
| MTBF | 70000h |
| Standards Met | ErP Compliant |
| Type | AC/DC Adapter |
| Length | 79.5mm |
| Minimum Temperature | 0°C |
| Depth | 74mm |
| Load Regulation | ±10% |
| Energy Efficiency Level | V |
| Width | 54.5mm |
