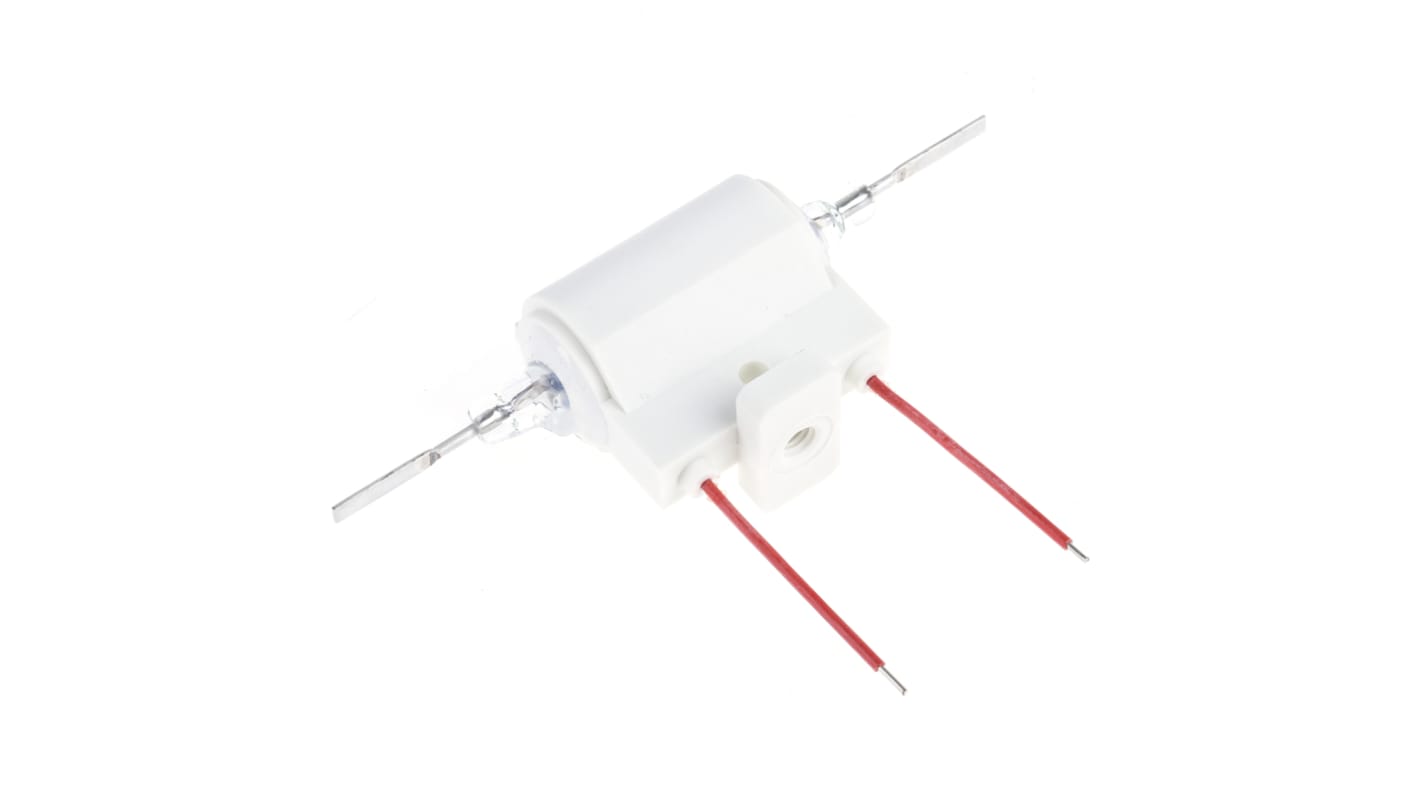

Meder Panel Mount Reed Relay, 24V dc Coil, SPST, 10000V dc Max, 3 A Max, 700Ω
- N° de stock RS:
- 349-1847
- Référence fabricant:
- H24-1A69
- Fabricant:
- Meder
29 En stock, livraison sous 1 jour(s) (stock Europe)
46 En stock, livraison sous 3 à 5 jours (stock Europe)
Ajouté
Prix la pièce
99,73 €
(TVA exclue)
120,67 €
(TVA incluse)
| Unité | Prix par unité |
| 1 - 24 | 99,73 € |
| 25 - 99 | 91,74 € |
| 100 - 249 | 83,76 € |
| 250 - 499 | 77,79 € |
| 500 + | 71,80 € |
- N° de stock RS:
- 349-1847
- Référence fabricant:
- H24-1A69
- Fabricant:
- Meder
Documentation technique
Législations et de normes
Détails du produit
SPNO H Series
Coil covered with a thermoplastic casing according to UL 94V-0
M4 screw fastening option
High insulation resistance
Maximum continuous current: 5A
Vibration resistance: 20g at 50 - 500 Hz
Operating temperature: -20°C to +70°C
Maximum switching current: 3A
Maximum switching power: 50W
M4 screw fastening option
High insulation resistance
Maximum continuous current: 5A
Vibration resistance: 20g at 50 - 500 Hz
Operating temperature: -20°C to +70°C
Maximum switching current: 3A
Maximum switching power: 50W
Spécifications
Attribut | Valeur |
|---|---|
| Contact Configuration | SPST |
| Coil Voltage | 24V dc |
| Mounting Type | Panel Mount |
| Maximum Switching Current DC | 3 A |
| Maximum Switching Voltage AC | 10000V ac |
| Maximum Switching Voltage DC | 10000V dc |
| Coil Power | 822mW |
| Coil Resistance | 700Ω |
| Length | 54mm |
| Height | 30mm |
| Depth | 18mm |
| Dimensions | 54 x 18 x 30mm |
| Isolation Coil To Contact | 15kV ac |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
| Number of Poles | 1 |
| Contact Resistance | 150 mΩ |
| Terminal Type | Through Hole |
| Operating Temperature Range | -20 → +70°C |
| Operating Time Including Bounce | 3ms |
| Maximum Switching Power DC | 50 W |
