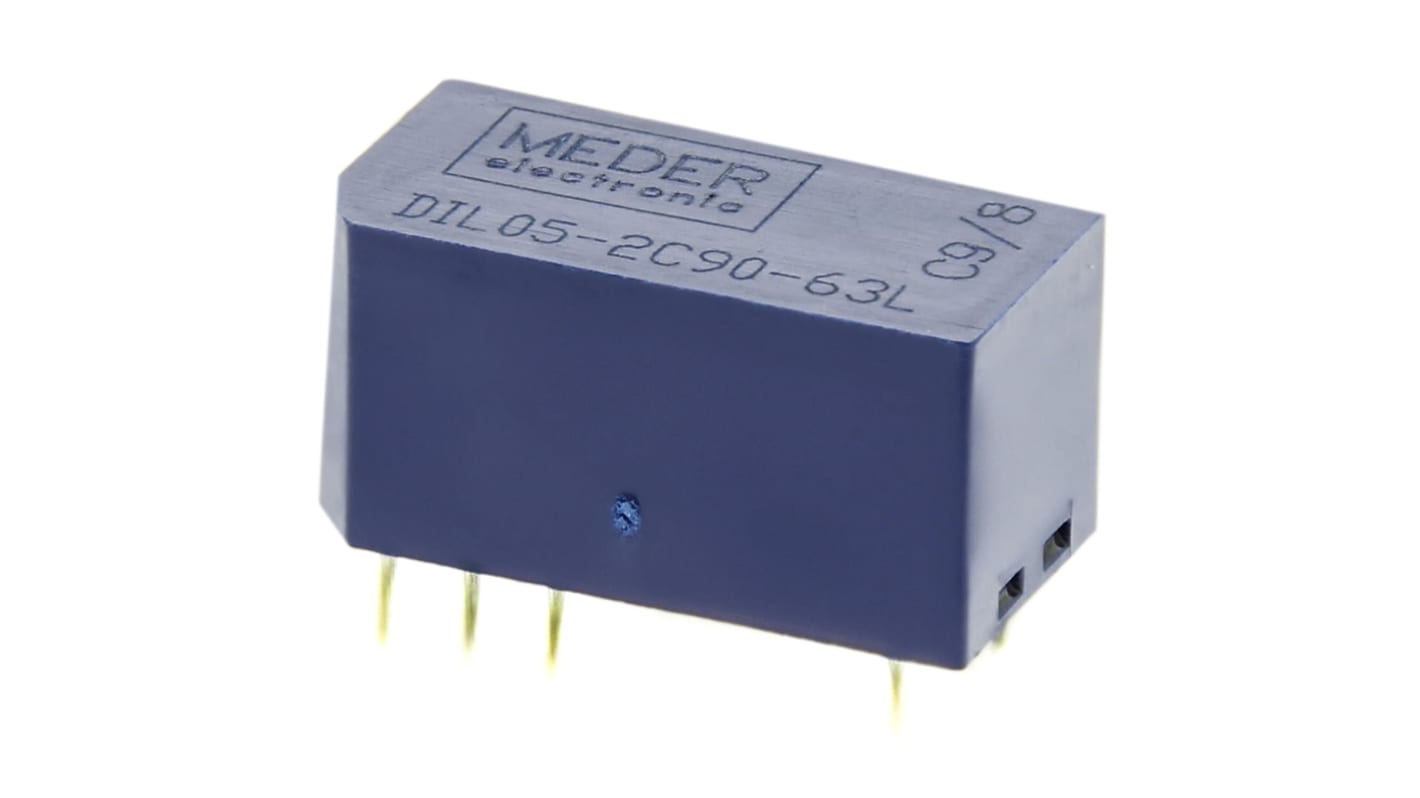

Meder PCB Mount Reed Relay, 5V dc Coil, DPDT, 175V dc Max, 0.25 A Max, 150Ω
- N° de stock RS:
- 349-1768
- Référence fabricant:
- DIL05-2C90-63L
- Fabricant:
- Meder
7 En stock pour livraison sous 1 jour(s)
Ajouté
Prix la pièce
23,07 €
(TVA exclue)
27,91 €
(TVA incluse)
| Unité | Prix par unité |
| 1 - 24 | 23,07 € |
| 25 - 99 | 21,23 € |
| 100 - 249 | 19,38 € |
| 250 - 499 | 17,99 € |
| 500 + | 16,61 € |
- N° de stock RS:
- 349-1768
- Référence fabricant:
- DIL05-2C90-63L
- Fabricant:
- Meder
Documentation technique
Législations et de normes
Statut RoHS non applicable
Détails du produit
DPCO DIL Relay
Compatible with DIL socket
Sealed with PU resin
Contact Material Rh
Operating temperature -20 to +70°C
Sealed with PU resin
Contact Material Rh
Operating temperature -20 to +70°C
Approvals
BABT
Spécifications
Attribut | Valeur |
|---|---|
| Contact Configuration | DPDT |
| Coil Voltage | 5V dc |
| Mounting Type | PCB Mount |
| Maximum Switching Current DC | 0.25 A |
| Maximum Switching Voltage AC | 175V ac |
| Maximum Switching Voltage DC | 175V dc |
| Coil Power | 166mW |
| Coil Resistance | 150Ω |
| Length | 20.1mm |
| Height | 10.2mm |
| Depth | 10.2mm |
| Dimensions | 20.1 x 10.2 x 10.2mm |
| Isolation Coil To Contact | 1.5kV dc |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
| Contact Resistance | 150 mΩ |
| Operating Temperature Range | -20 → +70°C |
| Maximum Switching Power DC | 3 W |
| Operating Time Including Bounce | 1ms |
| Terminal Type | Through Hole |
